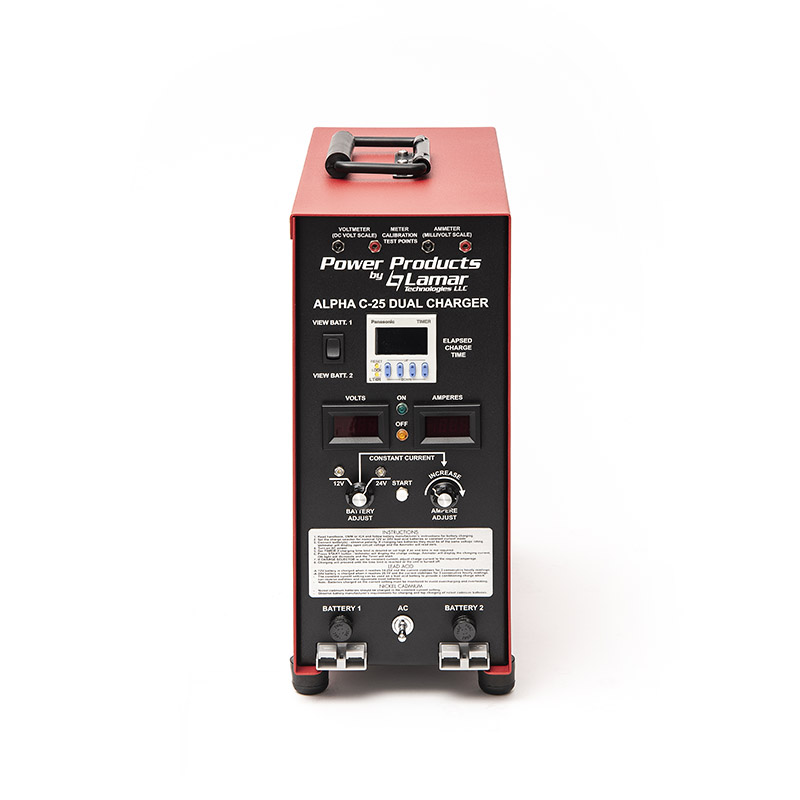

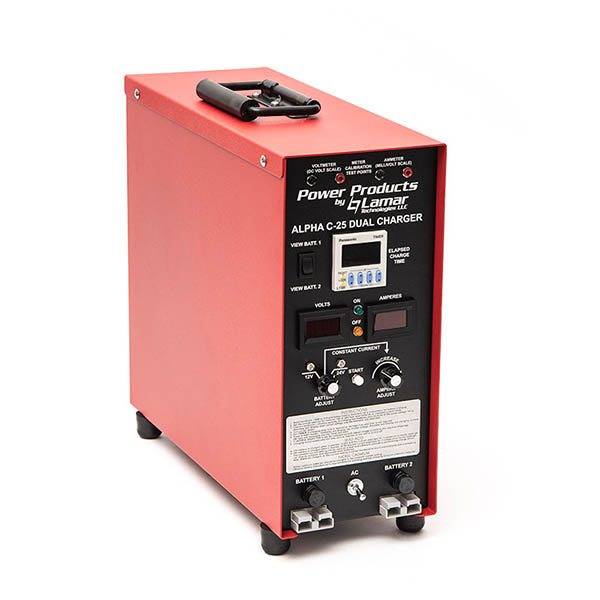

Power Products 25 Amp Battery Charger Alpha 25

1 Review 0 Answered Questions
$6033.00/Each
Quantity
Add to Wishlist
Part# 11-13887
MFR Model# C-25

Overview

Dual output charger for all types and ratings of Nickel Cadmium, sealed or vented Lead Acid aircraft batteries.

Features
  • Isolated charge - one or two batteries. Charges all 12 and 24 volt Lead Acid batteries and 1-22 cell NiCads.
  • Current adjustable from 0 to 25 amps.
  • True constant current (Cl) for NiCad batteries or constant potential (CP) for Lead Acid batteries
  • Digital ammeter and voltmeter read charge current and voltage for either battery.
  • Selectable charge time from 1 to 999 minutes with digital elapsed time.
  • Operates on either 115 or 230 VAC.
Operation
  • Select 12 or 24V for Lead Acid or constant current for NiCad charge/topping or Lead Acid conditioning.
  • Set charge time.
  • Set charge current.
Controls
  • Three position selector: 12V Lead (CP), 24V Lead (CP) or NiCad (CI).
  • Current adjust - 5 turn: 0 to 25 amperes.
  • Settable digital charge timer, 1 to 999 minutes.
  • Digital voltmeter and ammeter.
  • Constant Potential for 12 and 24V Sealed Lead Acid batteries. 35V max for NiCad.
  • AC switch.
  • AC line selector - on rear: 115 or 230V.

Specifications

  • Model and P/N: ALPHA C-25
  • Charge current: 0-25 amperes total
  • AC input: 12A@115V, 6A@230V / 50/60Hz
  • DC output cables: 3 sets: Elcon, aligator clips, rings
  • Charge voltage/current accuracy: +/- 1%
  • NSN: 6130-01-462-6335; 6130-21-258-4429 Canada
  • Dimensions: 6”L x 14”H x 15”D
  • Weight: 45 lbs
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

The housing was cracked when received. The housing was not aligned correctly and when screwing them together, it was screwed down too tight and cracked the housing.

Textron F Verified Purchase

Power Products By Lamar 25 Amp Battery Charger Alpha 25
June 24, 2021
