Rivedrill™

$156.75/Each
Quantity
Add to Wishlist
Part# 12-00253
MFR Model# RT110

Overview

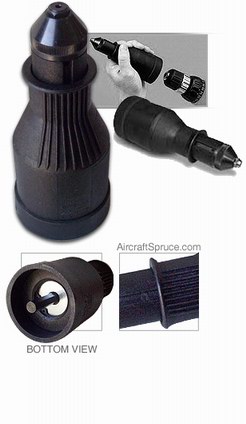

The patented drill attachment that easily converts cordless, electric and pneumatic drills into blind rivet guns. This innovative new tool allows operators to set up to 14 rivets per minute - twice as many as can be set by standard hand tools. And the new RiveDrill™ is also ergonomically friendly, requiring just 6.6 pounds of pressure to operate, compared to 77.2 pounds required for hand tool operation.

The RiveDrill™ can be quickly inserted into a 3/8"-reversible power drill as any standard drill bit would and is able to set any standard blind rivet up to 3/16" aluminum. The shank of the rivet is expelled when the drill is operated in the "reverse" mode. (For cordless electric power drills, a minimum 12v battery is recommended.) Nosepieces for 1/8", 5/32" and 3/16" sizes are included.

Specifications

  • Model 110
  • Weight: .618 Lbs. (280 grams)
  • Length: 5.5 in. (1441 mm)
  • Diameter: 2.4 in. (60 mm)
  • Battery for cordless drill: 12V 4Nosepieces included: 1/8", 5/32", 3/16"
  • Drill Types: Cordless, Electric, Pneumatic
  • Rivet capacities: 1/8", 5/32", 3/16" aluminum standard rivets; 1/8", 5/32" steel standard rivets; 1/8" stainless standard rivets.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the warranty on the Rivedrill? If I have a warranty claim, where do I send the unit?

This has a 90 day manufacturer's warranty. The Rivedrill can be returned directly to Aircraft Spruce should a warranty claim be necessary.

Q: What is the standard blind rivet this tool will set?

Per the supplier: It can set 1/8", 5/32", 3/16" Aluminum Standard Blind Rivets. 1/8", 5/32" Steel Standard Blind Rivets. 1/8" Stainless Steel Standard Blind Rivets.

Q: Will the Rivedrill work with cherry rivets?

Yes, cherry max rivets will work but not cherrylock rivets. They require a special nose piece that is not available.
