RV8 Travel Jack

$582.00/Each
Quantity
Add to Wishlist
Part# 12-03170

Overview

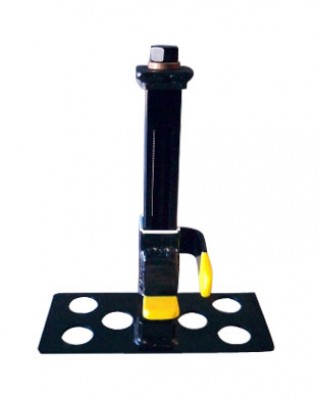

The RV 8 Travel Jack was designed and manufactured by RV-8 builder / pilot Steve Jackson. All steel construction, weighs less than 3 pounds. Jack mast easily removes from base plate for compact storage.

Uses 3/4" wrench to operate (wrench not included). Tested to 1350 pounds. Has securing arm that positions between the gear leg & brake to stabilize the jack - works on both left and right gear leg with a simple adjustment.

Base measures 3-1/2" X 8"; mast stands 10" tall. Designed for RV-8 flat spring gear legs (only -- will not work on the other RVs with round gear legs).

Specifications

  • Weight: 2.75 lbs.
  • Base: 3 1/2" x 8"
  • Mast Stands: 10" tall

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this jack work with Grove Blended Airfoil gear legs? The Grove Gear has the brake lines internal on the gear legs.

Per the supplier: Part number 12-03243 is the RV8 Jack for Grove gear. It works with the Grove gear with Vans brakes. It will not work with Grove gear and Grove brakes.

Q: Does the leg fairing have to be removed in order to use this travel jack?

Per the supplier: The leg fairing stays on.
