- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Economy 10 Strp Dp Inv Typ 6 1/4 | 12-01505 | $20.70 | |
| Economy 21 Strp Dp Inv Typ 6 1/4 | 12-01506 | $16.50 | |
| Economy 30 Strap Dp Inv Typ 6 1/4 | 12-01507 | $16.50 | |
| Economy 40 Strap Dp Inv Tpy 6 1/4 | 12-01508 | $16.50 | |
| Economy 1/4 Strp Dp Inv Typ 6 1/4 | 12-01509 | $12.85 | |
| Economy 10 Strp Dp Inv Typ 13 1/4 | 12-01510 | $19.50 | |
| Economy 21 Strp Dp Inv Typ 13 1/4 | 12-01511 | $19.50 | |
| Economy 30 Strp Dp Inv Typ 13 1/4 | 12-01512 | $14.55 | |
| Economy 40 Strp Dp Inv Typ 13 1/4 | 12-01513 | $19.50 | |
| Economy 1/4 Strp Dp Inv Tp 13 1/4 | 12-01514 | $19.50 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

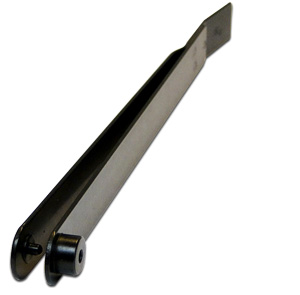

For drilling an accurate hole in overlapping sheets. The inverted type duplicator allows you to locate a hole from the back of an overlaping sheet. #10 #21 #30 #40 1/4" drill sizes, 6-1/4" or 13-1/4" PN 12-01507 is pictured. |
Reviews
Quality tool for the price!
Verified Purchase
Economy 1/4 Strp Dp Inv Typ 6 1/4
Quality tool for the price!
Verified Purchase
Economy 21 Strp Dp Inv Typ 6 1/4
Quality tool for the price!
Verified Purchase
Economy 40 Strap Dp Inv Tpy 6 1/4
Good quqlity product.
Verified Purchase
Economy 30 Strp Dp Inv Typ 13 1/4
Good quqlity product.
Verified Purchase
Economy 1/4 Strp Dp Inv Tp 13 1/4
Good quqlity product.
Verified Purchase
Economy 21 Strp Dp Inv Typ 13 1/4
Good quqlity product.
Verified Purchase
Economy 10 Strp Dp Inv Typ 13 1/4
Good quqlity product.
Verified Purchase
Economy 40 Strp Dp Inv Typ 13 1/4
My fault for not looking at the picture more carefully before buying. The description even says INVERTED TYPE. The tool is quite well made but not what I expected or wanted. I have not come across a use for this type of strap duplicator yet but for the price of the tool relative to the shipping I will just keep them and see if a need ever comes up.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Instrument screws are usually a 6-32 so you would want a #35 bit. I would go with the number 30 duplicator to make the initial hole and then follow up with a #35 drill.
Those are the lengths of the tool itself.
