ATS Time-Rite Complete Kit - 14MM Engines
$830.00/Each
Part# 12-05510
MFR Model# I200B14K
MFR Model# I200B14K
Overview
|

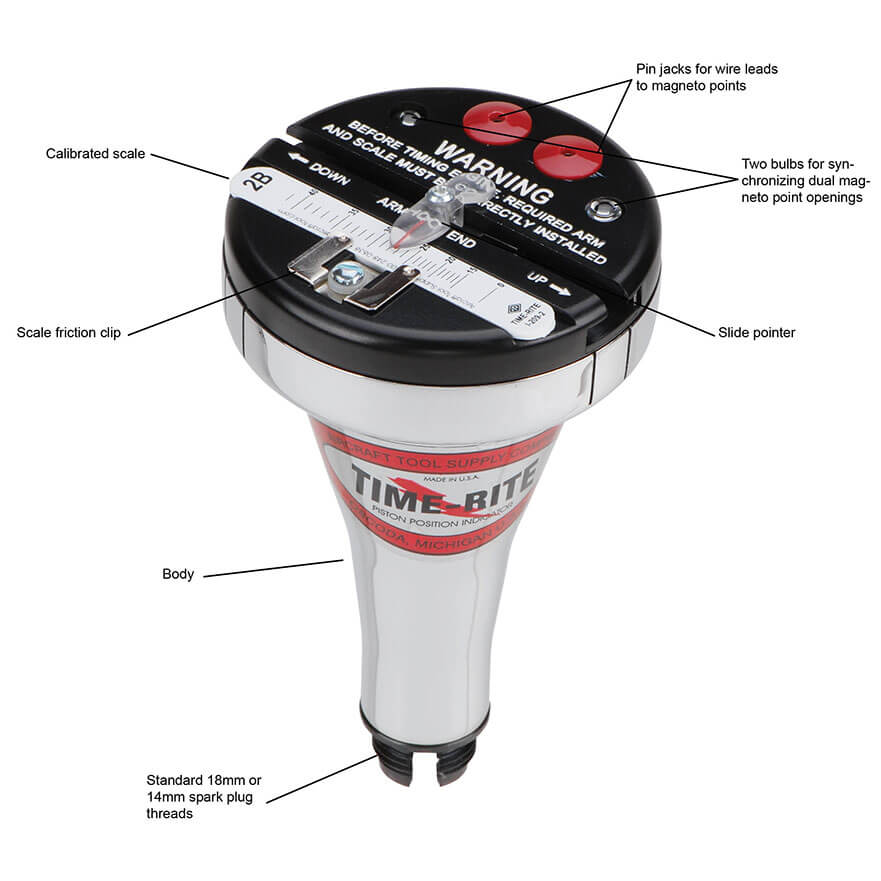

This complete kit includes the basic unit plus the complete set of Arms and Scales required to service 14mm engines. Time-Rite is an instrument designed for precision timing of aircraft engines by direct measurement of piston travel. The features of the Time-Rite design a moveable slide pointer, and an adjustable calibrated scale, eliminate the need for finding top dead center and compensate for the variables involved in accurate piston positioning. Calibrated scales are available for most types of engines, and scale calibrations are obtained in cooperation with, and are approved by the engine manufactures. Because of the difference in spark plug locations and piston dome shapes, different pivot arms are available to adapt the Time-Rite to most aircraft engines. All arms are easily interchanged. Carries a Lifetime ATS-Pro warranty. |
Engine Information
- Install Time-Rite in the spark plug hole of the timing cylinder and turn the engine through one complete cycle which leaves the slide pointer at the highest piston travel point, permitting alignment of the zero degree position on the calibrated scale with the slide pointer.
- Timing degree positions measured from the zero degree scale mark represent angular, crankshaft positions relative to true top dead center as obtained by methods using a pointer and protractor on the crankshaft.
Documents
In The Box

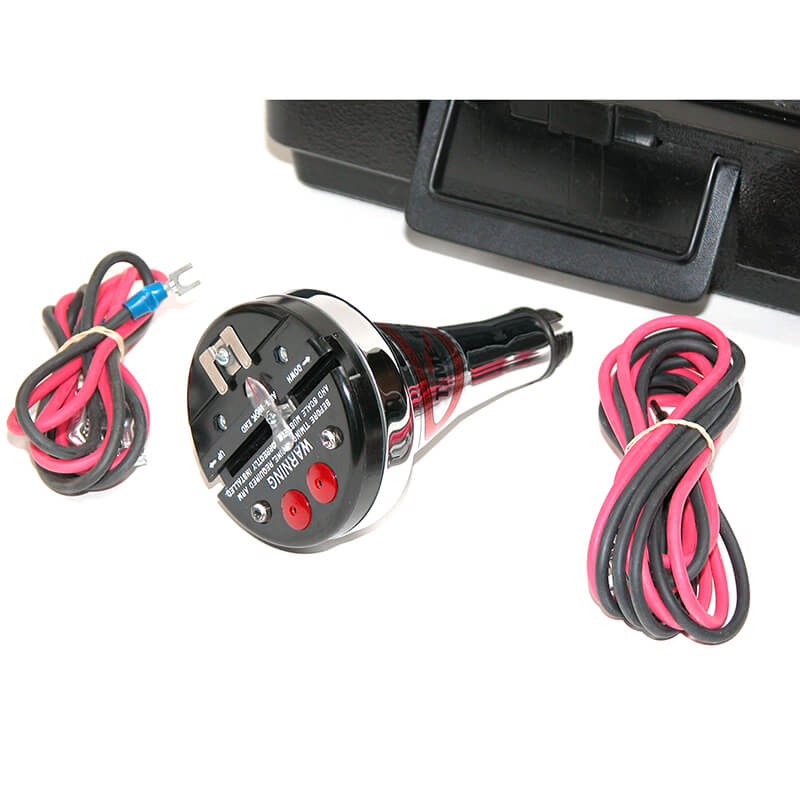

- One 14mm Time-Rite unit
- A complete set of scales for 14mm engines
- A complete set of arms for 14mm engines
- An instruction manual
- A fitted case
