Homebuilders Special!

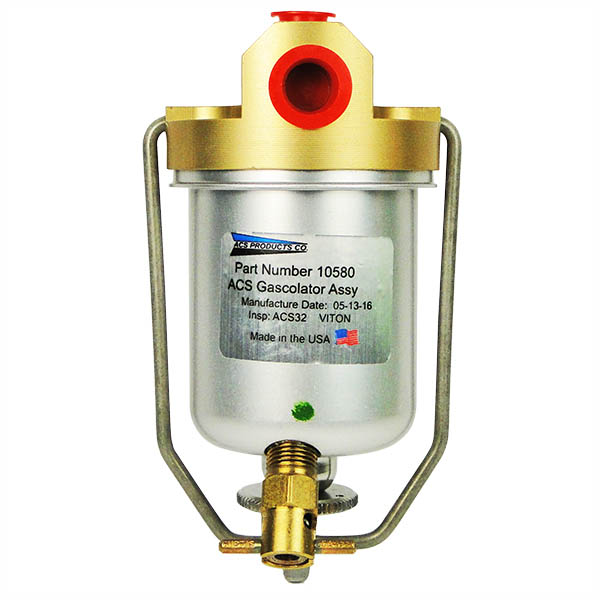

All-metal gascolator with S.S. screen, 1-7/8" dia. cadmium plated steel bowl w/quick drain. Top is CNC machined from 6061-T6 aluminum. Top has 1/4" pipe ports for 3/8" fuel line and one 1/8" pipe port for primer fitting. Wt: 8 oz. May be used with aviation and / or auto fuel. Screen size is 122 microns. Replacement gasket for auto fuel is p/n 06-00441. Made in USA Note: for use with aviation fuel and standard auto fuel. Do not use with fuel injectors because it cannot stand up to the pressure. |
As ordered and timely delivery - good product
Homebuilders Gascolator 10580
Great product did the exact job required for 👍🏻
Homebuilders Gascolator 10580
Looks like a well made unit
Homebuilders Gascolator 10580
My Ford model A does not have a good way to check for water in the gas tank. I had a glass gascolator on the firewall common to many Model As but is showed clear but was full of water. This HB unit saved the day. I was able to remove the glass bowl and replace with the HB gasc and keep my old top casting installed on the firewall. I am delighted with the product. I now use and aviation fuel checker to check for water. B Goddard, Shrewsbury, PA
Homebuilders Gascolator 10580
😊
Homebuilders Gascolator 10580
All right
Homebuilders Gascolator 10580
works great
Homebuilders Gascolator 10580
Homebuilders Gascolator 10580
Very nice product!
Homebuilders Gascolator 10580
Homebuilders Gascolator 10580
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The screen size for this ACS Gascolator is 122 microns.
This particular gascolator is not recommended for use with fuel injected systems. However, ACS does manufacture part number 05-04248 (ACS HIGH PRESSURE GASCOLATOR). The high pressure gascolator is rated for use in systems up to 50 PSI.
Approximate height is 4-1/2". Approximate diameter of cylinder is 2-1/4".
Use part # 06-00441. See Accessories.
The unit has an 1/8" NPT threaded drain valve.
The max continuous fuel pressure would be 3lbs for part # 10580. If you are looking for a gascolator with a higher fuel pressure, take a look at P/N# 05-04248, this would have a 40lb continuous fuel pressure.
The diameter of where the inlet and outlet ports is 1" and the top port is .8". The diameter of the gascolator bowl is 1.875".
Maximum capacity of the bowl is 3.3 oz
Maximum capacity of bowl: 3.3 OZ
The fuel inlet and outlet are 1/4" NPT, and the primer and drain ports are 1/8" NPT.
