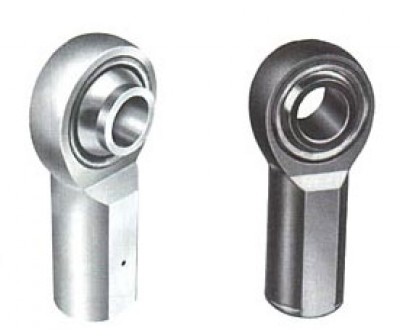

Aurora Bearings Female

1 Review 0 Answered Questions
From $35.65 to $107.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Aurora PN Heim Equivalent PN Thread Type Price Buy
GMW-3M-470F34-14MRight Hand$35.65
Quantity
GMG-3M-470FL34-14MLeft Hand$67.75
Quantity
GMW-3M-471F347-14MRight Hand$49.50
Quantity
GMG-3M-471FL347-14MLeft Hand$107.75
Quantity
GMW-3M-480FS4-16MRight Hand$47.60
Quantity
GMW-4M-470F44-14MRight Hand$59.90
Quantity
GMW-3M-570--Right Hand$78.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

GMW-M & GMG-M Series Female Rod Ends, General Aviation - Precision

  • Body - Carbon steel, protective coated for corrosion resistance.

  • Race - Carbon steel,protective coated for corrosion resistance.

  • Ball - Alloy steel, heat treated, hard chrome plated (AMS-QQ-C-320 Class 2).

  • Left-hand threaded units have an identification groove near end of shank.

  • Grease Fitting available for all sizes. Units are supplied without grease fittings. When a grease fitting is required, specify by adding suffix "Z" or "F". Ex.: GMW-3MZ-470 = Zerk Type Fitting GMW-3MF-470 = Flush Type Fitting.

  • Load ratings apply only to rod ends without grease fittings. For load ratings with fittings, consult our engineering department.

  • For rod end bearings which are non-traceable or non-magnetic particle inspected, consult factory.

Specification Chart



Aurora P/N
Heim P/N
Thread Type
SEE DIAGRAM ABOVE
B
(IN.)
W
(IN.)
H
(IN.)
A
(IN.)
D
(IN.)
K
(IN.)
J
(IN.)
N
(IN.)
O
(IN.)
C
(IN.)
Thread Size
a
(DEG.)
GMW-3M-570
F35-14M
Right Hand
.1900
.437
.328
1.375
.750
.468
.375
.312
.315
.750
5/16-24
10
GMG-3M-570
FL35-14M
Left Hand
.1900
.437
.328
1.375
.750
.468
.375
.312
.315
.750
5/16-24
10
GMG-3M-470
-
Left Hand
.1900
.437
.328
1.375
.750
.468
.375
.312
.315
.750
1/4-28
10
GMW-3M-470
-
Right Hand
.1900
.437
.328
1.375
.750
.468
.375
.312
.315
.750
1/4-28
10
GMW-3M-471
F347-14M
Right Hand
.1900
.437
.328
1.062
.750
.375
-
-
.315
.437
1/4-28
10
GMG-3M-471
FL347-14M
Left Hand
.1900
.437
.328
1.062
.750
.375
-
-
.315
.437
1/4-28
10
GMW-3M-480
FS4-16M
Right Hand
.1900
.500
.375
1.375
.812
.468
.375
.312
.312
.750
1/4-28
15
GMG-3M-480
FL34-16M
Left Hand
.1900
.500
.375
1.375
.812
.468
.375
.312
.312
.750
1/4-28
15
GMW-4M-470
F44-14M
Right Hand
.2500
.437

.304

1.375
.812
.468
.375
.312
.353
.750
1/4-28
18
GMG-4M-470
FL44-14M
Left Hand
.2500
.437

.304

1.375
.812
.468
.375
.312
.353
.750
1/4-28
18
GMW-4M-595
F45-19M
Right Hand
.2500
.593
.406
1.469
.938
.500
-
.312
.485
.844
5/16-24
10
GMG-4M-595
FL45-19M
Left Hand
.2500
.593
.406
1.469
.938
.500
-
.312
.485
.844
5/16-24
10
