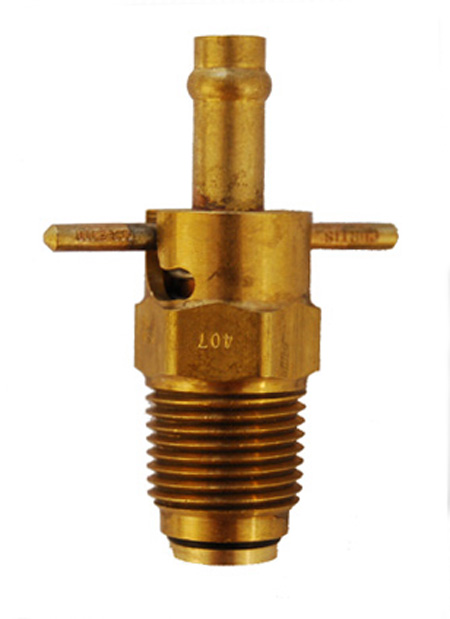

Curtis Hose Barb Valve - CCB-37000

$102.75/Each
Quantity
Add to Wishlist
Part# 05-03061
MFR Model# CCB-37000

Overview

  • Brass
  • Thread Size: 1/2-Inch NPT
  • Body Length: 2.128-Inches
  • Stem Length: 1.125-Inches
  • Lock Wire Drilled
  • Action: Push to Open, Turn to Lock Open
  • Conforms Functionally To: USAF Spec. 28208, MIL-V-25023, TSO-C76

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.

Reviews

Everything as expected. Works well.

Gary L Verified Purchase

Curtis Oil Drain Vlv CCB-37000

August 8, 2024

Worked great

Billy E Verified Purchase

Curtis Oil Drain Vlv CCB-37000

July 17, 2024

Appears correct, will install at the next oil change.

Ron E Verified Purchase

Curtis Oil Drain Vlv CCB-37000

July 10, 2023

Curtis holds PMA on the CCB-37000 Drain Valve for certain Lycoming engines. See their website. Slightly shorter than the one it replaced. Looks like a quality product. Would appreciate recommended thread sealants.

Aerotecnica Verified Purchase

Curtis Oil Drain Vlv CCB-37000

September 30, 2022

Fits perfect

Dennis H Verified Purchase

Curtis Oil Drain Vlv CCB-37000

May 9, 2022

Part worked great

Terry F
April 16, 2020

Great quality and the spring tension is MUCH BETTER than the blue aluminum ones. My blue one leaks like a 99 dodge truck. That’s why I purchased this one.

Alex C
April 27, 2019

Fit perfectly on my O-290

Eric B
March 22, 2018

Great!

Sawtooth E Verified Purchase

Curtis Oil Drain Vlv CCB-37000

August 31, 2022

This fit my Comanche 250 perfectly. The only disadvantage is that there was no allowance for safety wiring the unit in place.

Br F Verified Purchase

Curtis Oil Drain Vlv CCB-37000

August 30, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the OD of the discharge stem? (Or what ID and type of hose fits over it the best?)

This measures to .38".

Q: Is this product suitable as a fuel drain valve?

Yes, it has TSO certification for fuel.

Q: Is this Curtis valve CCB-37000 suitable for an oil sump drain?

Yes this is an oil drain valve.

Q: What is the rubber washer Part Number?

Per Curtis, these are not able to be overhauled. They do not sell the seals for this and recommend replacing the valve.
