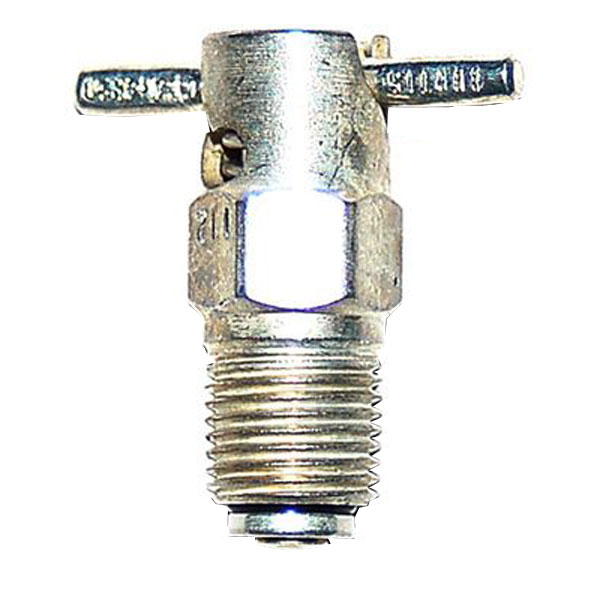

Curtis Pipe Thread Drain Valve - CCA-4850

$38.60/Each
Part# 05-00686
MFR Model# CCA-4850

Overview

Quick opening brass drain valve for aircraft oil or fuel systems. A slight twist opens valve. No safety wire needed in closed position. FAA approved. TSO-C76 Approved.

Note: FAA Approval applies to fuel applications only. NOT FAA Approved for oil applications.

CCA-4850 SPECIFICATIONS:
  • Brass, Cadmium Plated
  • Thread Size: 1/8-Inch NPT
  • Length: 1.358-Inch
  • Action: Spiral, Lock Open
  • Conforms To: USAF Spec. 28208, USAF 49F9798-49, NSN 2915-01-050-7496, TSO-C76

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.

Reviews

Magaero L Verified Purchase

CCA-4850 Curtis Drain Valve

January 13, 2023

Excellent and fast. The valve was the correct size and stopped my fuel Leak.

Francis B Verified Purchase

CCA-4850 Curtis Drain Valve

December 27, 2021

The CCA-4850 is the factory spec fuel drain for the fuel strainer on most of the Beech Musketeer series. This is a brass valve with a silver cad plate coating. The CCA-1250 is the same brass valve but without the cad plating.

Bruce B
June 28, 2019
