Ercoupe Battery Master Relay Installation STC Kit

$374.00/Each
Quantity
Add to Wishlist
Part# 05-15055
MFR Model# STC SA02601CH

Overview

An FAA STC/PMA approved safety upgrade to your Univair (Erco) 415-C, 415-CD, 415-D, MODEL - E, - G, - F-1, or F-1A aircraft's electrical system that authorizes the installation of a high current Battery Master Relay and low current control circuit.

This safety upgrade provides a high current path for the aircraft electrical load, eliminating switch heating, burnout and potential fire danger.

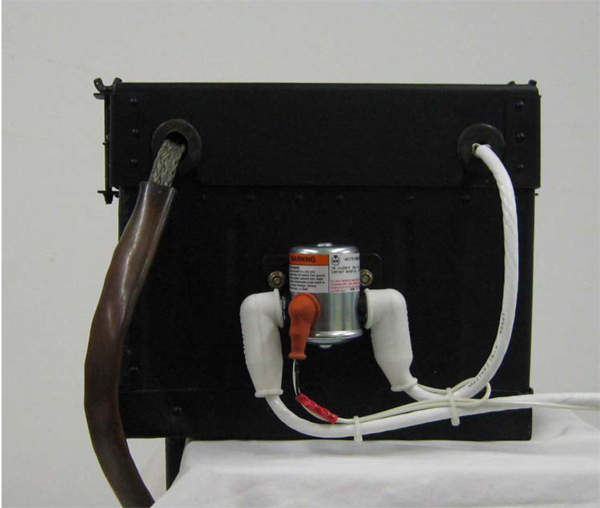

This installation is accomplished through the addition of a high current master relay attached to the battery box, which reuses much of the existing factory installed wiring.The battery master switch is replaced by a new AN3027-2 / MS35059-22 switch at its current location or relocation to the instrument panel is authorized.

Material is supplied to accomplish either installation method.

In The Box

  • Master DP/ST Switch
  • AMP Connector
  • Insulating Boots
  • Wire Ring Terminals
  • Wire
  • Wire Splice
  • Diode
  • Heat Shrink
  • Screws, Washers, & Nuts
