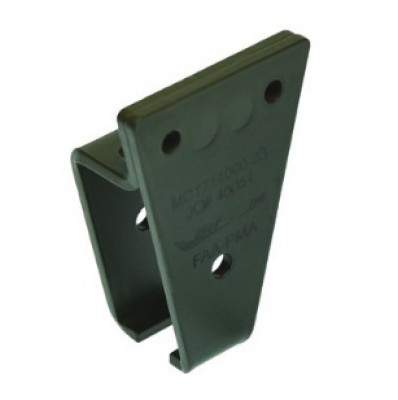

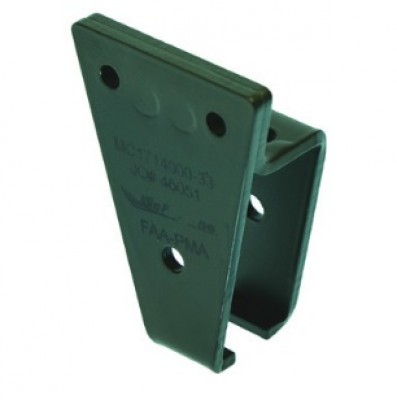

Seat Roller Housings For Cessna - MC1714000-33

$364.00/Each
Quantity
Add to Wishlist
Part# 05-15017
MFR Model# MC1714000-33

Overview

Seat Roller Housings for Cessna MC1714000-33.
  • Anodized for improved wear and corrosion resistance
  • Precision machined with perfected dimension for smooth installation and operation
  • FAA-PMA direct replacement
  • Replace out-of-spec housings as required by FAA AD 2011-10-09

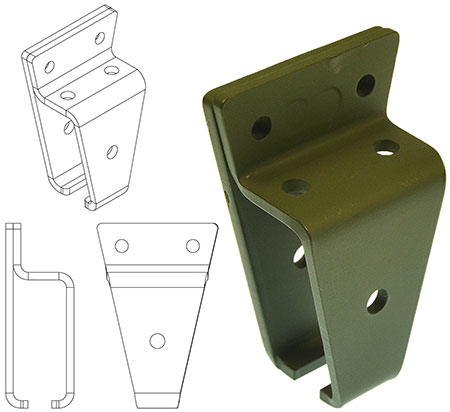

See the Flow Chart for Key dimensions & pictures to help with your selection process. Flow Chart

Aircraft Eligibility:

Model
Beginning S/N Ending S/N
172K 17258487 17259223
172K 17258487 17259223
172K 17258487 17259223
172K 17258487 17259223
172L 17259224 17260758
172L 17259224 17260758
172L 17259224 17260758
172L 17259224 17260758
172M 17263459 17267584
172M 17263459 17267584
172M 17263459 17267584
172M 17263459 17267584
172M 17260759 17263458
172M 17260759 17263458
172M 17260759 17263458
172M 17260759 17263458
172N 17267585 17274009
172N 17267585 17274009
172N 17267585 17274009
172N 17267585 17274009
172P 17274010 17276654
172P 17274010 17276654
172P 17274010 17276654
172P 17274010 17276654
172Q 17275869 17276211
172Q 17275869 17276211
172Q 17275869 17276211
172Q 17275869 17276211
172RG 172RG0001 172RG1191
172RG 172RG0001 172RG1191
172RG 172RG0001 172RG1191
172RG 172RG0001 172RG1191
177 17700001 17701164
177 17700001 17701164
177 17700001 17701164
177 17700001 17701164
177A 17701165 17701370
177A 17701165 17701370
177A 17701165 17701370
177A 17701165 17701370
177B 17701371 17702752
177B 17701371 17702752
177B 17701371 17702672
177B 17701371 17702672
177RG 177RG0001 177RG1366
177RG 177RG0001 177RG1366
177RG 177RG0001 177RG1366
177RG 177RG0001 177RG1366
177RG 177RG0001 177RG1366
177RG 177RG0001 177RG1366
180H 18052104 18052284
180H 18052104 18052284
180H 18052104 18052284
180H 18052104 18052284
180J 18052385 18052770
180J 18052385 18052770
180J 18052385 18052770
180J 18052385 18052770
180J 18052285 18052384
180J 18052285 18052384
180J 18052285 18052384
180J 18052285 18052384
180K 18052771 18053203
180K 18052771 18053203
180K 18052771 18053203
180K 18052771 18053203
182N 18260056 18260825
182N 18260056 18260825
182N 18260056 18260825
182N 18260056 18260825
182P 18260826 18262465
182P 18260826 18262465
182P 18260826 18262465
182P 18260826 18262465
182P 18262466 18265175
182P 18262466 18265175
182P 18262466 18265175
182P 18262466 18265175
182Q 18265176 18267715
182Q 18265176 18267715
182Q 18265176 18267715
182Q 18265176 18267715
182R 18267716 18268586
182R 18267716 18268586
182R 18267716 18268586
182R 18267716 18268586
188B 18800833 18802348
188B 18800833 18802348
188B 18800833 18802348
188B 18800833 18802348
207 20700149 20700362
207 20700149 20700362
207 20700149 20700362
207 20700149 20700362
207A 20700149 20700788
207A 20700149 20700788
207A 20700149 20700788
207A 20700149 20700788
210K 21059200 21059502
210K 21059200 21059502
210K 21059200 21059502
210K 21059200 21059502
210L 21059503 21061573
210L 21059503 21061573
210L 21059503 21061573
210L 21059503 21061573
210M 21061574 21062954
210M 21061574 21062954
210M 21061574 21062954
210M 21061574 21062954
210N 21062955 21064135
210N 21062955 21064135
210N 21062955 21064135
210N 21062955 21064135
210N 21064136 21064897
210N 21064136 21064897
210N 21064136 21064897
210N 21064136 21064897
210R 21064898 21065009
210R 21064898 21065009
210R 21064898 21065009
210R 21064898 21065009
337E 33701194 33701316
337E 33701194 33701316
337E 33701194 33701316
337E 33701194 33701316
337F 33701317 33701462
337F 33701317 33701462
337F 33701317 33701462
337F 33701317 33701462
337G 33701551 33701815
337G 33701551 33701815
337G 33701551 33701815
337G 33701551 33701815
337H 33701816 33701922
337H 33701816 33701922
337H 33701816 33701922
337H 33701816 33701922
337H 33701928 33701950
337H 33701928 33701950
337H 33701928 33701950
337H 33701928 33701950
A185E 185-0691 18502090
A185E 185-0691 18502090
A185E 185-0691 18502090
A185E 185-0691 18502090
A185F 185-0691 18502310
A185F 185-0691 18502310
A185F 185-0691 18502310
A185F 185-0691 18502310
A185F 18502311 18504448
A185F 18502311 18504448
A185F 18502311 18504448
A185F 18502311 18504448
A188B 18800833 18802348
A188B 18800833 18802348
A188B 18800833 18802348
A188B 18800833 18802348
A188B 18802349 18803973
A188B 18802349 18803973
A188B 18802349 18803973
A188B 18802349 18803973
A188B (w/ large hopper) 18802349T 18803973T
A188B (w/ large hopper) 18802349T 18803973T
A188B (w/ large hopper) 18802349T 18803973T
A188B (w/ large hopper) 18802349T 18803973T
F172H F17200655 F17200754
F172H F17200655 F17200754
F172H F17200655 F17200754
F172H F17200655 F17200754
F172K F17200755 F17200804
F172K F17200755 F17200804
F172K F17200755 F17200804
F172K F17200755 F17200804
F172L F17200805 F17200904
F172L F17200805 F17200904
F172L F17200805 F17200904
F172L F17200805 F17200904
F172M F17201235 F17201514
F172M F17201235 F17201514
F172M F17201235 F17201514
F172M F17201235 F17201514
F172M F17200905 F17201234
F172M F17200905 F17201234
F172M F17200905 F17201234
F172M F17200905 F17201234
F172N F17201515 F17202039
F172N F17201515 F17202039
F172N F17201515 F17202039
F172N F17201515 F17202039
F172P F17202040 F17202216
F172P F17202040 F17202216
F172P F17202040 F17202216
F172P F17202040 F17202216
F172P F17202217 F17202254
F172P F17202217 F17202254
F172P F17202217 F17202254
F172P F17202217 F17202254
F177RG F177RG0001 F177RG0177
F177RG F177RG0001 F177RG0177
F177RG F177RG0001 F177RG0177
F177RG F177RG0001 F177RG0177
F177RG F177RG0001 F177RG0177
F177RG F177RG0001 F177RG0177
F182P F18200001 F18200025
F182P F18200001 F18200025
F182P F18200001 F18200025
F182P F18200001 F18200025
F182Q F18200026 F18200169
F182Q F18200026 F18200169
F182Q F18200026 F18200169
F182Q F18200026 F18200169
F337E F3370001 F3370024
F337E F3370001 F3370024
F337E F3370001 F3370024
F337E F3370001 F3370024
F337F F3370025 F3370055
F337F F3370025 F3370055
F337F F3370025 F3370055
F337F F3370025 F3370055
F337G F33700064 F3370084
F337G F33700064 F3370084
F337G F33700064 F3370084
F337G F33700064 F3370084
F337H F3370085 F33700086
F337H F3370085 F33700086
F337H F3370085 F33700086
F337H F3370085 F33700086
FR172G FR17200146 FR17200225
FR172G FR17200146 FR17200225
FR172G FR17200146 FR17200225
FR172G FR17200146 FR17200225
FR172H FR17200226 FR17200350
FR172H FR17200226 FR17200350
FR172H FR17200226 FR17200350
FR172H FR17200226 FR17200350
FR172J FR17200351 FR17200590
FR172J FR17200351 FR17200590
FR172J FR17200351 FR17200590
FR172J FR17200351 FR17200590
FR172K FR17200591 FR17200675
FR172K FR17200591 FR17200675
FR172K FR17200591 FR17200675
FR172K FR17200591 FR17200675
FR182 FR18200001 FR18200070
FR182 FR18200001 FR18200070
FR182 FR18200001 FR18200070
FR182 FR18200001 FR18200070
FT337GP (FP337) FP3370009 FP3370022
FT337GP (FP337) FP3370009 FP3370022
FT337GP (FP337) FP3370009 FP3370022
FT337GP (FP337) FP3370009 FP3370022
FT337HP (FP337H) FP3370023 FP3379999
FT337HP (FP337H) FP3370023 FP3379999
FT337HP (FP337H) FP3370023 FP3379999
FT337HP (FP337H) FP3370023 FP3379999
P206E P20600604 P20600647
P206E P20600604 P20600647
P206E P20600604 P20600647
P206E P20600604 P20600647
P210N P21000001 P21000834
P210N P21000001 P21000834
P210N P21000001 P21000834
P210N P21000001 P21000834
P210R P21000835 P21000874
P210R P21000835 P21000874
P210R P21000835 P21000874
P210R P21000835 P21000874
P337H P3370293 P3370356
P337H P3370293 P3370356
P337H P3370293 P3370356
P337H P3370293 P3370356
R172G (T-41C,D) R1720410 R1720444
R172G (T-41C,D) R1720410 R1720444
R172G (T-41C,D) R1720410 R1720444
R172G (T-41C,D) R1720410 R1720444
R172H (T-41D) R1720445 R1720620
R172H (T-41D) R1720445 R1720620
R172H (T-41D) R1720445 R1720620
R172H (T-41D) R1720445 R1720620
R172K R1722000 R1723454
R172K R1722000 R1723454
R172K R1722000 R1723454
R172K R1722000 R1723454
R182 R18200001 R18202041
R182 R18200001 R18202041
R182 R18200001 R18202041
R182 R18200001 R18202041
T182 18267716 18268541
T182 18267716 18268541
T182 18267716 18268541
T182 18267716 18268541
T188C T18803325T T18803974T
T188C T18803325T T18803974T
T188C T18803325T T18803974T
T188C T18803325T T18803974T
T207 20700149 20700362
T207 20700149 20700362
T207 20700149 20700362
T207 20700149 20700362
T207A 20700149 20700788
T207A 20700149 20700788
T207A 20700149 20700788
T207A 20700149 20700788
T210K 21059200 21059502
T210K 21059200 21059502
T210K 21059200 21059502
T210K 21059200 21059502
T210L 21059503 21061573
T210L 21059503 21061573
T210L 21059503 21061573
T210L 21059503 21061573
T210M 21061574 21062954
T210M 21061574 21062954
T210M 21061574 21062954
T210M 21061574 21062954
T210N 21062955 21064135
T210N 21062955 21064135
T210N 21062955 21064135
T210N 21062955 21064135
T210N 21064136 21064897
T210N 21064136 21064897
T210N 21064136 21064897
T210N 21064136 21064897
T210R 21064898 21065009
T210R 21064898 21065009
T210R 21064898 21065009
T210R 21064898 21065009
T337G 337-0149 P3370292
T337G 337-0149 P3370292
T337G 337-0149 P3370292
T337G 337-0149 P3370292
T337H 33701816 33701922
T337H 33701816 33701922
T337H 33701816 33701922
T337H 33701816 33701922
T337H 33701928 33701950
T337H 33701928 33701950
T337H 33701928 33701950
T337H 33701928 33701950
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TP206E P20600604 P20600647
TR182 R18200584 R18202041
TR182 R18200584 R18202041
TR182 R18200584 R18202041
TR182 R18200584 R18202041
TU206E U20601445 U20601700
TU206E U20601445 U20601700
TU206E U20601445 U20601700
TU206E U20601445 U20601700
TU206F U20601701 U20602199
TU206F U20601701 U20602199
TU206F U20601701 U20602199
TU206F U20601701 U20602199
TU206G U20606440 U20607020
TU206G U20606440 U20607020
TU206G U20606440 U20607020
TU206G U20606440 U20607020
U206E U20601445 U20601700
U206E U20601445 U20601700
U206E U20601445 U20601700
U206E U20601445 U20601700
U206F U20601701 U20602199
U206F U20601701 U20602199
U206F U20601701 U20602199
U206F U20601701 U20602199
U206G U20606440 U20607020
U206G U20606440 U20607020
U206G U20606440 U20607020
U206G U20606440 U20607020
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the quantity of 1 for an entire seat? Four are required to replace all the housings for one seat.

These are sold as each, it is only one roller housing.
