Home / Airframe Parts / Piper Parts / Trim Hinge Kits /Piper Trim Hinge Kits
Main Image

Piper Trim Hinge Kits

0 Reviews 0 Answered Questions
From $90.75 to $668.00
Main Image

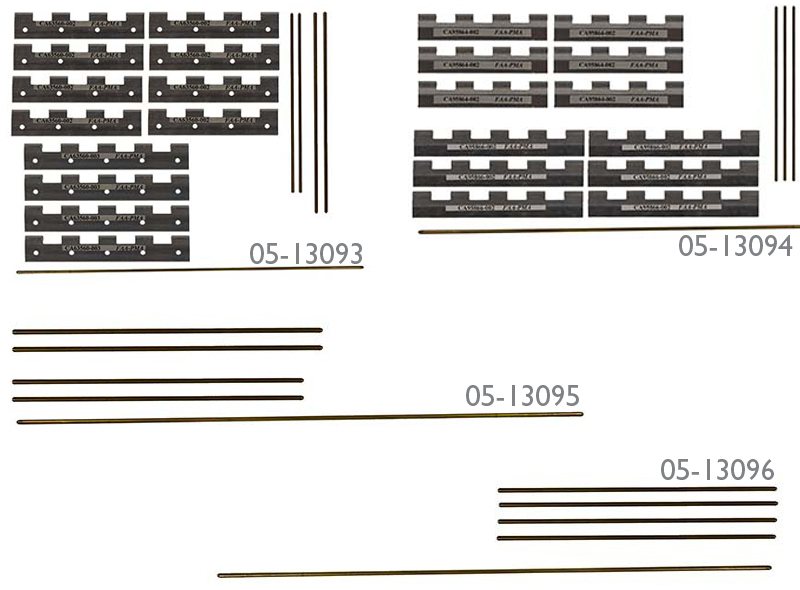

Model Number Description Part Number Price Buy
PTH-KT-1Trim Hinge
05-13093
$668.00
Quantity
PTH-KT-2Trim Hinge
05-13094
$470.00
Quantity
PTP-KT-1Trim Pin
05-13095
$93.75
Quantity
PTP-KT-2Trim Pin
05-13096
$90.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Trim Hinge Kits for Piper Aircraft.
FAA-PMA Approved - Fits many popular Piper Aircraft.

Aircraft Eligibility:

PTH-KT-1
  • PA-28-140 (28-20001 thru 28-7725290)
  • PA-28-150 (28-1 thru 28-4377)
  • PA-28-151 (28-7415001 thru 28-7715314)
  • PA-28-160 (28-1 thru 28-4377)
  • PA-28-161 (2816001 thru 2816119)
  • PA-28-161 (28-7716001 thru 28-8616057)
  • PA-28-161 (2841001 thru 2841365)
  • PA-28-161 (2842001 thru 2842999)
  • PA-28-180 (28-671 thru 28-7205328)
  • PA-28-180 (28-7305001 thru 28-7505260)
  • PA-28-181 (28-7690001 thru 28-8690062)
  • PA-28-181 (2890001 thru 2890231)
  • PA-28-181 (2843001 thru 2843999)
  • PA-28-201T (28-7921001 thru 28-7921095)
  • PA-28-235 (28-10001 thru 28-7210023)
  • PA-28-235 (28-7310001 thru 28-7710089)
  • PA-28-236 (2811001 thru 2811050)
  • PA-28-236 (28-7911001 thru 28-8611008)
  • PA-28-236 (2845001 thru 2845999)
  • PA-28R-180 (28R-30002 thru 28R-7130013)
  • PA-28R-200 (28R-35001 thru 28R-7135238)
  • PA-28R-200 (28R-7235001 thru 28R-7635545)
  • PA-28R-201 (2837001 thru 2837061)
  • PA-28R-201 (2844001 thru 2844999)
  • PA-28R-201 (28R-7737002 thru 28R-7837317)
  • PA-28R-201T (28R-7703001 thru 28R-7803373)
  • PA-28R-201T (2803001 thru 2803012)
  • PA-32-260 (32-1 thru 32-7800008)
  • PA-32-300 (32-40000 thru 32-7940290)
  • PA-32-301 (3206001 thru 3206060)
  • PA-32-301 (32-8006002 thru 32-8606023)
  • PA-32-301T (32-8024001 thru 32-8424002)
  • PA-32R-300 (32R-7680001 thru 32R-7880068)
  • PA-32R-301 (3213001 thru 3213103)
  • PA-32R-301 (32R-8013001 thru 32R-8613006)
  • PA-32R-301 (3246001 thru 3246999)
  • PA-32R-301T (3229001 thru 3229003)
  • PA-32R-301T (32R-8029001 thru 32R-8629008)
  • PA-32R-301T (3257001 thru 3257999)
PTH-KT-2
  • PA-34-200 (34-7250001 thru 34-7450220)
  • PA-34-200T (34-7570001 thru 34-8170092)
  • PA-34-220T (3448001 thru 3448079)
  • PA-34-220T (34-8133001 thru 34-8633031)
  • PA-34-220T (3449001 thru 3449999)
  • PA-34-220T (3447001 thru 3447029)
  • PA-34-220T (3433001 thru 3433172)
PTP-KT-1
  • PA-28-140 (28-20001 thru 28-7725290)
  • PA-28-150 (28-1 thru 28-4377)
  • PA-28-151 (28-7415001 thru 28-7715314)
  • PA-28-160 (28-1 thru 28-4377)
  • PA-28-161 (2816001 thru 2816119)
  • PA-28-161 (28-7716001 thru 28-8616057)
  • PA-28-161 (2841001 thru 2841365)
  • PA-28-161 (2842001 thru 2842999)
  • PA-28-180 (28-671 thru 28-7205328)
  • PA-28-180 (28-7305001 thru 28-7505260)
  • PA-28-181 (28-7690001 thru 28-8690062)
  • PA-28-181 (2890001 thru 2890231)
  • PA-28-181 (2843001 thru 2843999)
  • PA-28-201T (28-7921001 thru 28-7921095)
  • PA-28-235 (28-10001 thru 28-7210023)
  • PA-28-235 (28-7310001 thru 28-7710089)
  • PA-28-236 (2811001 thru 2811050)
  • PA-28-236 (28-7911001 thru 28-8611008)
  • PA-28-236 (2845001 thru 2845999)
  • PA-28R-180 (28R-30002 thru 28R-7130013)
  • PA-28R-200 (28R-35001 thru 28R-7135238)
  • PA-28R-200 (28R-7235001 thru 28R-7635545)
  • PA-28R-201 (2837001 thru 2837061)
  • PA-28R-201 (2844001 thru 2844999)
  • PA-28R-201 (28R-7737002 thru 28R-7837317)
  • PA-28R-201T (28R-7703001 thru 28R-7803373)
  • PA-28R-201T (2803001 thru 2803012)
  • PA-28RT-201 (28R-7918001 thru 28R-8218026)
  • PA-28RT-201T (2831001 thru 2831038)
  • PA-28RT-201T (28R-7931001 thru 28R-8631005)
  • PA-32-260 (32-1 thru 32-7800008)
  • PA-32-300 (32-40000 thru 32-7940290)
  • PA-32-301 (3206001 thru 3206060)
  • PA-32-301 (32-8006002 thru 32-8606023)
  • PA-32-301T (32-8024001 thru 32-8424002)
  • PA-32R-300 (32R-7680001 thru 32R-7880068)
  • PA-32R-301 (3213001 thru 3213103)
  • PA-32R-301 (32R-8013001 thru 32R-8613006)
  • PA-32R-301 (3246001 thru 3246999)
  • PA-32R-301T (3229001 thru 3229003)
  • PA-32R-301T (32R-8029001 thru 32R-8629008)
  • PA-32R-301T (3257001 thru 3257999)
  • PA-44-180 (4496001 thru 4496999)
  • PA-44-180 (44-7995001 thru 44-8195026)
  • PA-44-180 (4495001 thru 4495013)
  • PA-44-180T (44-8107001 thru 44-8207020)
PTP-KT-2
  • PA-34-200 (34-7250001 thru 34-7450220)
  • PA-34-200T (34-7570001 thru 34-8170092)
  • PA-34-220T (3448001 thru 3448079)
  • PA-34-220T (34-8133001 thru 34-8633031)
  • PA-34-220T (3449001 thru 3449999)
  • PA-34-220T (3447001 thru 3447029)
  • PA-34-220T (3433001 thru 3433172)

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
