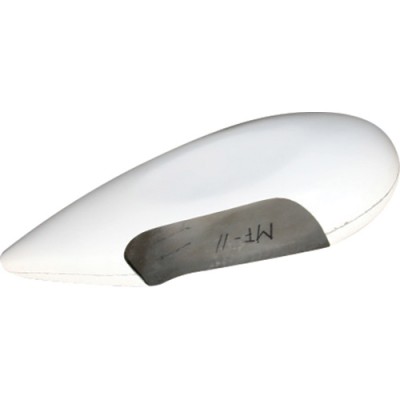

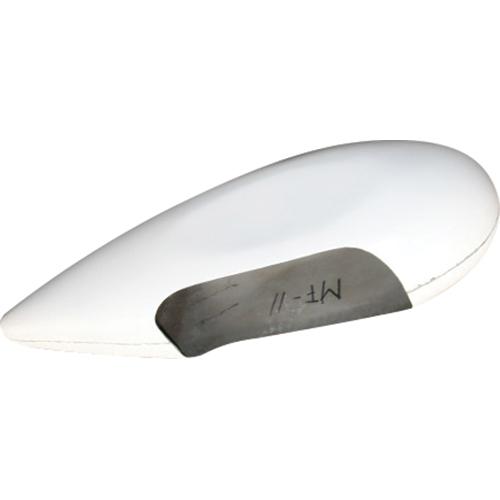

6:00 X 6 wheel fairings. Same size and shape as used on the Tripacer, Pacer or Colt. More streamlined design than the MF-9. A nice installation on the Super Cub w/ 8.00 x 4 wheels. Overall size: 43"L x 9-1/2"w Opening Size: 9.5"w x 18.5"L Note: Light fill and sanding is required for smooth ready to paint surface. A finishing service is available as an option at checkout that will leave a primer smooth surface. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part number 05-01225 is sold as a pair. One fairing by itself weighs approximately 5.3 lbs.
Each 800-6 tire can be slightly different in size. We picked our Airtrac 800-6 4ply tire for the example, 06-09900. Uninflated, it measures approximately 18" dia. x 7" wide. The catalog lists the opening for the 05-01225 wheel pant to be 18.5" long x 9.5" wide so it should fit. The wheel pant is fiberglass, so some trimming can be done by the installer.
