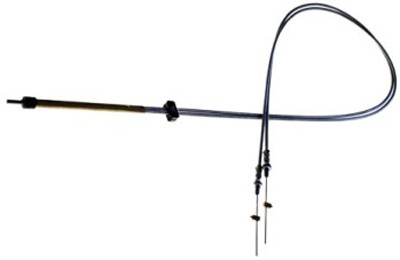

Quadrant Control Cables

0 Reviews 0 Answered Questions
From $313.00 to $390.00
Main Image
Description Part Number Price Buy
McQ100D048 Control Quadrant Dual 4Foot
05-11273
$313.00
Quantity
McQ100D072 Control Quadrant Dual 6Foot
05-11274
$330.00
Quantity
McQ100D096 Control Quadrant Dual 8Foot
05-11275
$369.00
Quantity
McQ100D144 Control Quadrant Dual 12Ft
05-11276
$390.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Quadrant Style Throttle Controls for Dual Carburetor 912/914 Series Rotax Engines
Innovative design allows a neat, clean installation without a clunky splitter box

These controls feature the same high quality construction and smooth operation as our popular MCT100D panel mount controls, but they are designed for use with a quadrant.

These controls are not for use on certified aircraft, or for flight controls or flight control trim tabs.

Features

  • Quality stainless steel construction
  • High temperature Teflon™ lined conduit for smooth, consistent control (Cheapy controls with poly liners will not tolerate engine temperatures)
  • Available in 4, 6, 8, 12 foot and custom lengths
  • May be trimmed to length
  • Convenient dual conduit clamp for simple mounting
  • Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
  • Adjustable cable stops to limit travel
  • Viton boot to dampen vibration and seal out dust on the quadrant end
  • Manufactured to the same quality standards as McFarlane's FAA-PMA controls

Specifications

  • Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
  • Conduit: 0.188 inch OD Teflon™ lined wound conduit
  • Inner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161
  • Travel (stroke): 4 inch maximum
  • Design Work Loads: Pull: 25 lbs maximum (not designed for push loads)
  • Operating Temperature: -65 to 450 deg F
  • Pushrod Thread (quadrant end): 10-32 UNF x 0.65"
