- Photo may represent series and not specific product
- SHARE
| PN | Size | ID | OD | Overall Width | Height | Thickness | Price | Buy |
|---|---|---|---|---|---|---|---|---|
05-01431 | 3/16 | .200 | .326 | .442 | .096 | .020 | $5.75 | |
05-2500 | 1/4 | .257 | .375 | .565 | .125 | .025 | $5.40 | |
05-3125 | 5/16 | .325 | .450 | .710 | .200 | .047 | $5.35 | |
05-4375 | 7/16 | .445 | .610 | .910 | .250 | .047 | $5.35 | |
05-5001 | 1/2 | .515 | .710 | 1.125 | .250 | .047 | $5.35 | |
05-6250 | 5/8 | .638 | .900 | 1.250 | .250 | .047 | $6.60 | |
05-7500 | 3/4 | .763 | 1.000 | 1.375 | .375 | .047 | $6.60 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

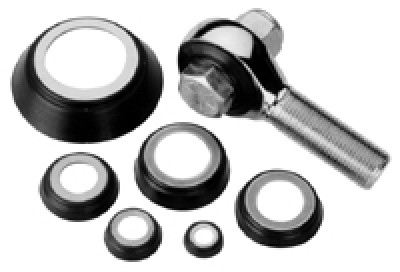

Protect the spherical bearing of rod ends. This patented design features a neoprene rubber seal bonded directly to an aircraft quality washer. The seal encapsulates the bearing and flexes accordingly with any change in angularity. This provides unprecedented protection from dirt and other types of contamination which may severely shorten the life of these important components. The rubber is engineered for wide range of temperature variation and is impervious to gasoline, oils, and most other common fluids. The steel washer is plated for protection from corrosion. |
Reviews
Fit well and appear to afford a good seal throughout the rod ends range of motion.
Verified Purchase
5/8" Rod End Seal Seals-It
Fit well and appear to afford a good seal throughout the rod ends range of motion.
Verified Purchase
3/4" Rod End Seal Seals-It
Verified Purchase
5/16" Rod End Seal Seals-It
Verified Purchase
1/4" Rod End Seal Seals-It
Great service!!
excellent
Verified Purchase
1/2" Rod End Seal Seals-It
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are priced and sold each, single unit.
