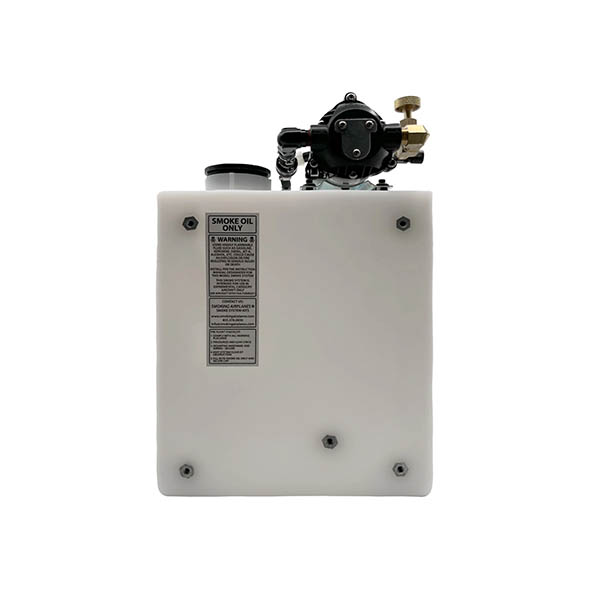

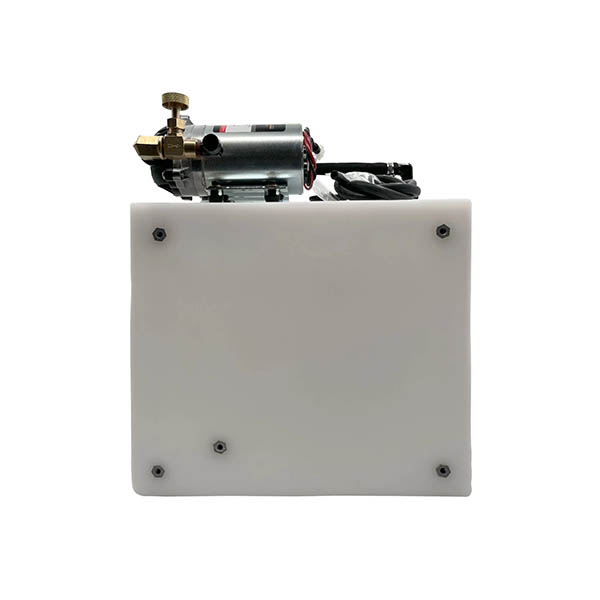

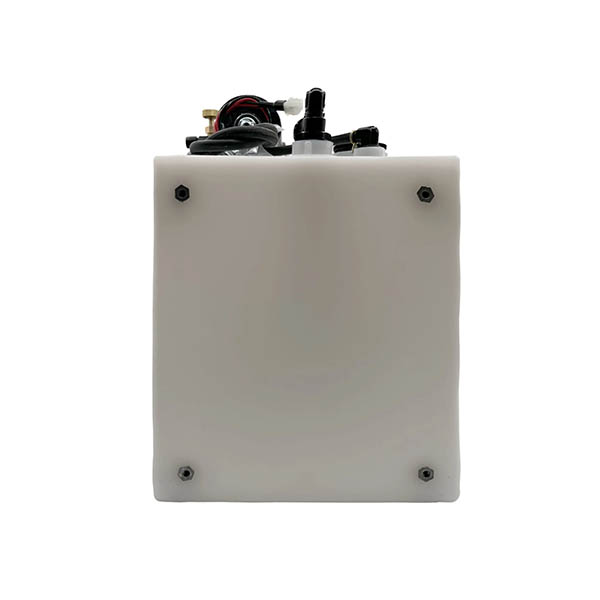

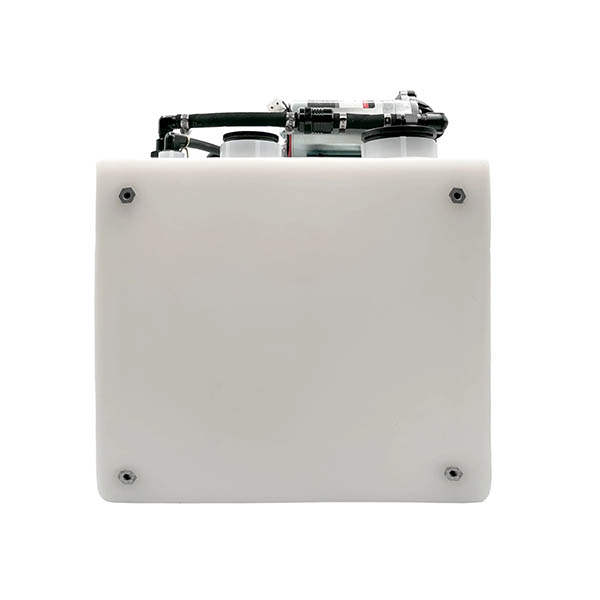

Smoking Airplanes Smoke System 5.5V

0 Reviews 0 Answered Questions
$2530.00/Each
Quantity
Add to Wishlist
Part# 05-28847
MFR Model# 5.5V

Overview

Smoking Airplanes Smoke System 5.5V

Features

  • Rated for 18g
  • 12v or 24v power ok
  • Suitable for all aircraft
  • Pump flow: 1.8 +/- GPM
  • Spray rate: 0.8 +/- GPM
  • Adjustable with incl valve
  • Tank capacity: 5.5 gallons
  • Total run time: 7+/- minutes
  • Typical installation time: 1 day
  • Ready for External Fill Kit option
  • Turbine and Jet ordering information
  • Engineered for continuous inverted flight
  • Strong monolithic tank construction (no seams)
  • See successfully earned FAA Field approvals
  • Oil level quickly & easily determined (tank is transparent)
  • Tank easily removed and re-connected (when space is needed)

Specifications

  • DIMENSIONS:
  • Pump height: 4"
  • Vertical tank: 13.25″ x 10.125″ x 13.5" (LxWxH)
  • WEIGHT:
  • Smoke System (full): 69 lbs
  • Smoke System (empty): 23 lbs

Documents

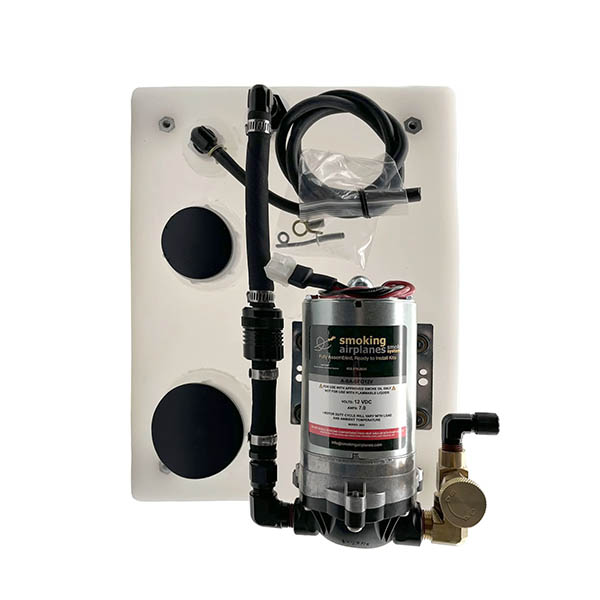

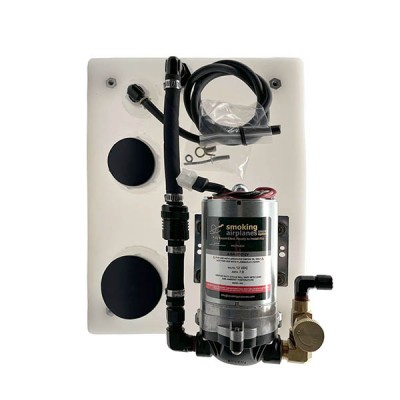

In The Box

  • Oil filter

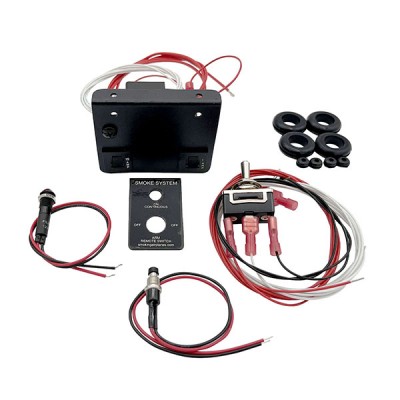

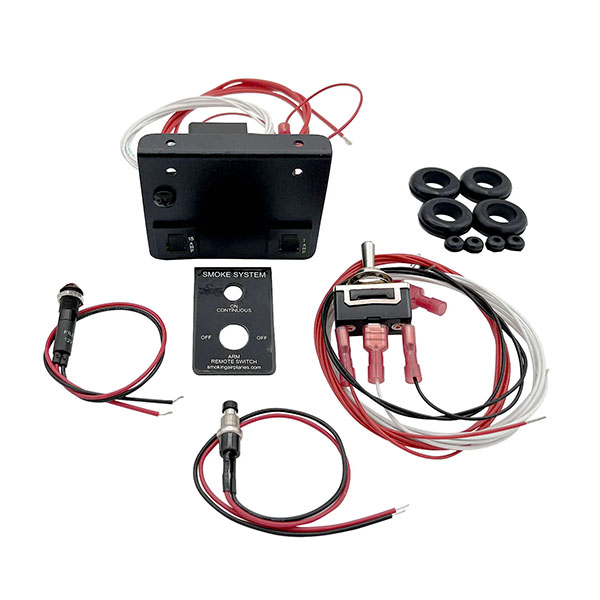

  • Electronics
  • Check valve
  • Suction hose

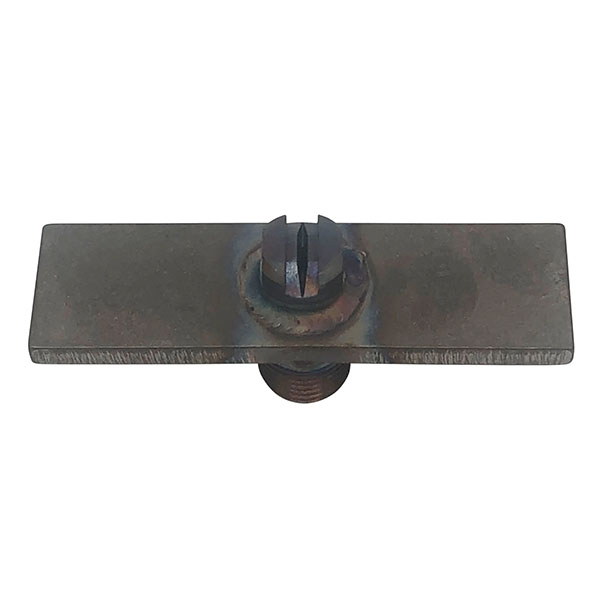

  • Piston injector (1)

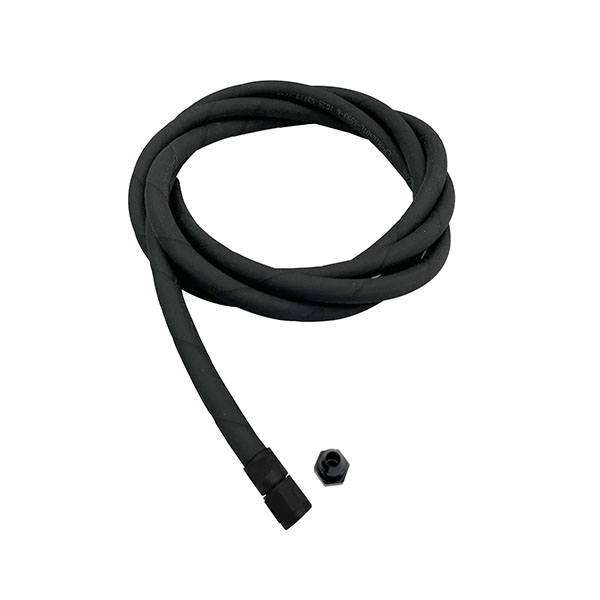

  • Pressure hose (10')
  • Stainless steel hose (3')

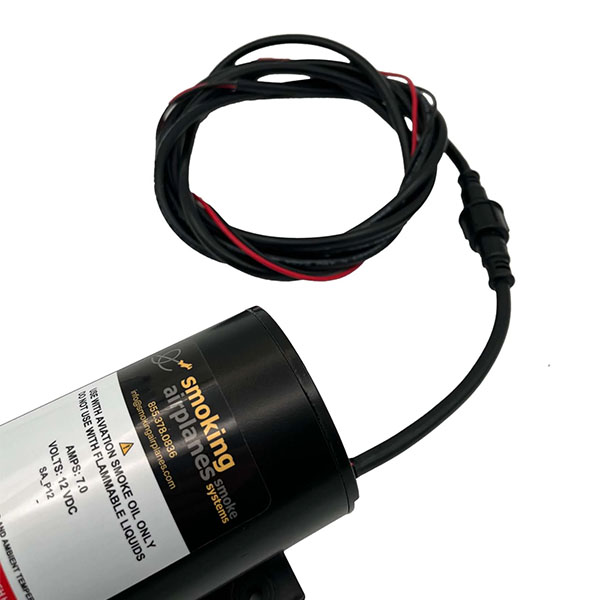

  • 12v pump (& 24v to 12v converter)
  • Visual step by step instructions link

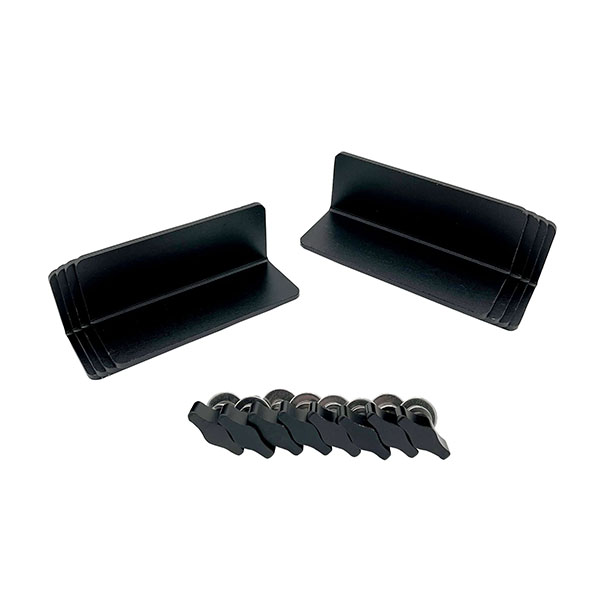

  • Note: Fasteners for attaching brackets to aircraft not include
