Appareo Stratus ESG ADS-B In / Out Transponder With 3I Kit - Certified Aircraft

0 Reviews 10 Answered Questions
$5654.00/Each
Quantity
Add to Wishlist
Part# 11-16556
MFR Model# 153010-000050-62

Overview

Note: This unit must ship to an approved Appareo installer for installation.
Click here to locate an installer.

The Stratus ESG provides a simplified “all-in-one box” solution for 2020 compliance with a Stratus ES transponder, as well as a non-certified ADS-B receiver.

Stratus ESG (ADS-B OUT)
  • 1090ES transponder
  • Built-in WAAS GPS
  • GPS Antenna Included
Stratus 3i (ADS-B IN)
  • Non-certified receiver made only for Stratus ESG
  • Backup AHRS
  • Integrated with ForeFlight on iPad
  • Requires connection to Stratus ESG
Note: This unit does not communicate with other brand panel mount units, ie Garmin, Avidyne, MGL, GRT, etc. It is designed to be paired with an iPad.

Features

  • 1090ES (Mode S extended squitter)
  • Built-in WAAS GPS
  • Meets global mandates for ADS-B Out
  • Push-button operation
  • Easy-to-use interface
  • Pressure altitude monitor

Specifications

  • Bezel Height: 1.69 in. (43 mm)
  • Bezel Width: 6.38 in. (162 mm)
  • Depth: 10.75 in. (273 mm) front of panel to connector backshell
  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors
  • Operating Temperature: -20°C to 55°C
  • Storage Temperature: -55°C to 85°C
  • Power Input: 9.0 to 36.0 VDC, 15 W typical
  • Cooling Input: No fan required
  • Environmental Compliance: DO-160G
  • Software Compliance: DO-178B Level C
  • Hardware Compliance: DO-254 Level C
  • Display: OLED
  • Transmitter Power: 310 W
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is an interface kit required or is it included?

When ordering this part, the necessary mounting hardware will be included. The interface kit is more meant for the Stratus 3 which is the portable version.

Q: Can I get GPS position data for my ELT from my new stratus transponder WAAS? Pin 6?

No, the Stratus ESG cannot be used for this.

Q: Can this kit be used on certified airplanes, including the 3i kit for ADSB in?

Yes, this kit is for certified aircraft and must be installed by an authorized Appareo installer.

Q: Is the Appareo Startus ESG transponder Mode C?

This transponder is a 1090ES transponder. (Mode S extended squitter).

Q: Can GPS waypoints be loaded into Stratus 3i? If so, how many and can they be stored?

The Stratus 3I is simply a GPS/ADS-B receiver and only provides information to the application like Foreflight. it does not store waypoints.

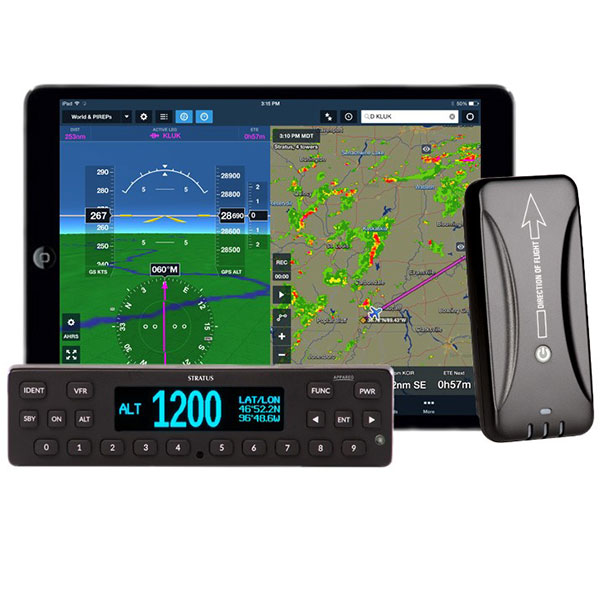

Q: Do you get every thing that you see in the picture?

The iPad is not included but you do get the transponder and the stratus 3i.

Q: Can this APPAREO STRATUS ESG ADS-B IN / OUT TRANSPONDER WITH 3I KIT - CERTIFIED AIRCRAFT be installed on an ultralight?

Yes, this could be installed on either certified or experimental aircraft.

Q: Can I buy this and ship to me directly then I will bring it to my preferred (authorized installer still searching)?

No, unfortunately we cannot. This must ship to an installer. If you prefer the kit now, please order 11-17601 A&P bundle.

Q: Can you use a tablet with this APPAREO STRATUS ESG ADS-B IN / OUT TRANSPONDER WITH 3I KIT or does it have to be a iPad?

It is not the device, rather the software that matters. If you have Foreflight on a tablet, it will connect.

Q: Will this Appareo Stratus ESG connect to any other EFBs besides Foreflight? If so is there a known list?

All generations of Stratus receivers work seamlessly with Stratus Insight, our electronic flight bag (EFB).

Stratus 3 was designed using the GDL-90 protocol, meaning it will work with a variety of EFBs. It can be switched to "Open ADS-B Mode" within the Stratus Settings (found in our free app Stratus Horizon Pro).

APP DEVELOPERS SUPPORTING STRATUS 3:

  • ForeFlight Mobile - Version 10.2.2
  • Stratus Insight - Version 5.17.3
  • Stratus Horizon Pro - Version 2.0.3
APP DEVELOPERS SUPPORTING STRATUS 3 THROUGH THE GDL-90 PROTCOL:
  • Garmin Pilot - Version 10.6.0 (iOS ONLY)
  • WingX - Version 9
  • FltPlan Go - Version 4.7.10 for iOS, 4.9.2 for Android, 2.6.10 for Windows
  • FlyQ - Version 3.2
  • iFly GPS - Version 10.3
  • Airmate - Version 1.26
  • AvPlan EFB - Version 7.7.3
  • Xavion - Version 1.88
  • SkyDemon - Version 3.1
  • OzRunways
  • NAVIATOR - Version 3.9.1
  • iFlightPlanner - Version 4.5.5
If you have a question regarding Stratus 3 compatibility with a specific EFB, please contact the app developer.
