RAMI AV-569 Marker Beacon Antenna

$288.95/Each
Quantity
Add to Wishlist
Part# AV-569
MFR Model# AV-569

Overview

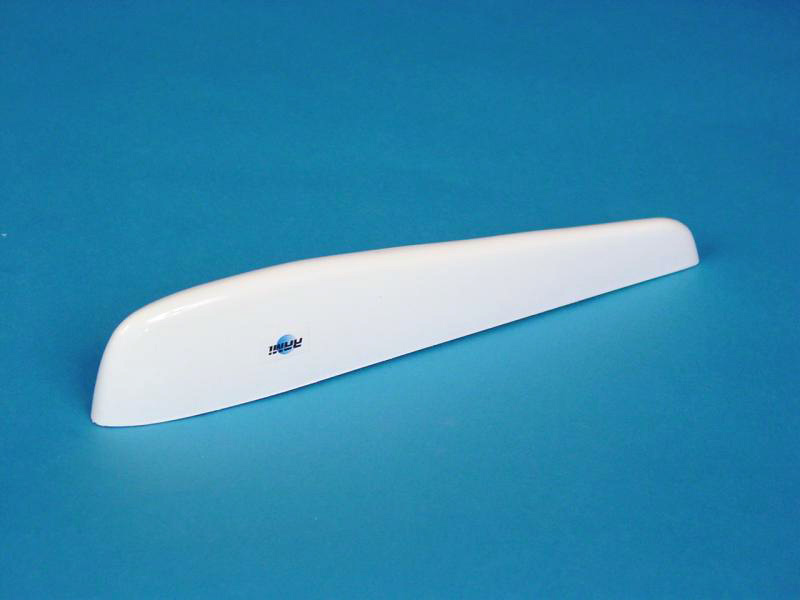

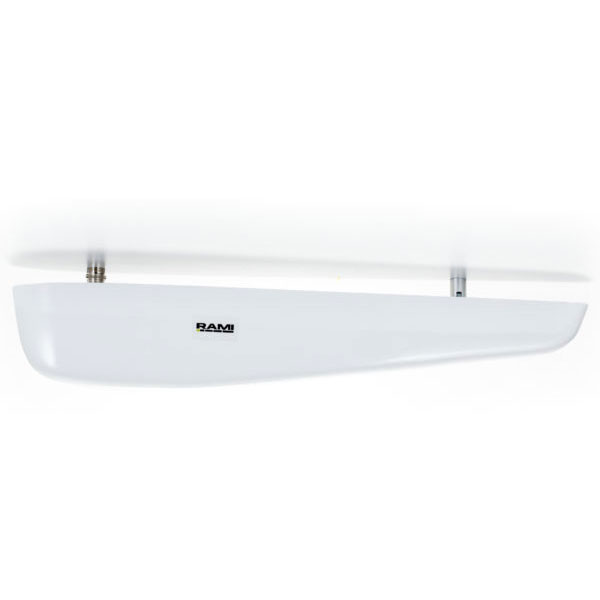

The AV-569 is a Boat Type Marker Beacon antenna designed for very low drag. It is constructed of an acrylonitrile-styrene-acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows maximum performance without losses due to color pigments or unseen dirt. It is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.20 lb @ 250 mph.

Specifications

  • Application: Marker Beacon
  • Frequency: 75 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.6 to 1 Maximum
  • Connector: Type "BNC" Female
  • Max Weight: 6.25 oz
  • Max Height: 2-1/2"
  • RF Power Capacity: Receive only
