Overview

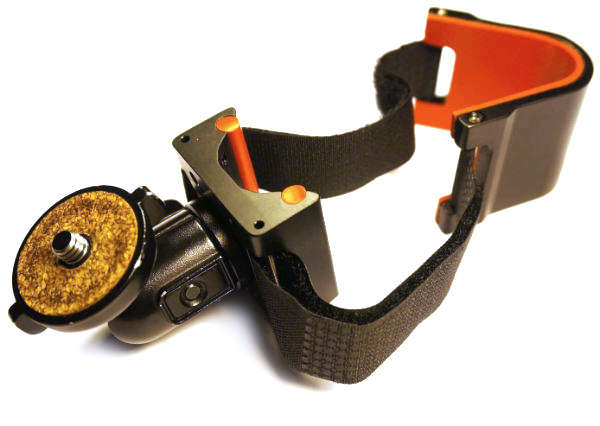

This configuration comprises a large front clamp with a large clamp and 7.00″ straps. Clamp parts are 6061-T6 CNC machined from custom extrusions designed specifically for this application. All CNC machined parts are then anodized black. All additional assembly hardware is 1018 Stainless Steel. Camera interface is a professional ball mount with a 1/4-20 threaded stud. The professional ball mount allows the ability to set the shot in an any orientation desired then lock it in place. Ie Forward, Aft, toward pilot, straight down etc. The front clamp contacts the leading edge at opposing tangent points with a set of rubber feet. Included are two different sets of rubber feet in a soft and hard compound. The rear clamp also contacts the trailing edge at dual opposing tangent points and the contact patch is made from silicone sheet so as not to mar the surface of the strut.

This configuration is used on the following Aircraft:

Cessna:

• 140a
• 150
• 152
• 162
• 170
• 172
• 175

Glassair:

• Sportsman

Stinson:

• 108 Series
• 10 Series
• Note: Stinson Struts must not have riveted trailing edge.

Note:
Your Camera may require an adapter to use the Coud 9 mount please read below and understand your mounting needs before placing order!

With the camera interface being a 1/4-20 threaded stud some cameras will require a tripod adapter. Cameras with an integrated threaded insert for tripod mounting will not. Below is a list of common cameras and their mounting needs. We will be offering CNC machined Tripod Adapters for sale soon but until they are available please see below for more info on adapters.

• No adapter needed: Drift, Sony and newer Contour
• Adapter needed: Gopro, Garmin, Replay & 360 Fly
