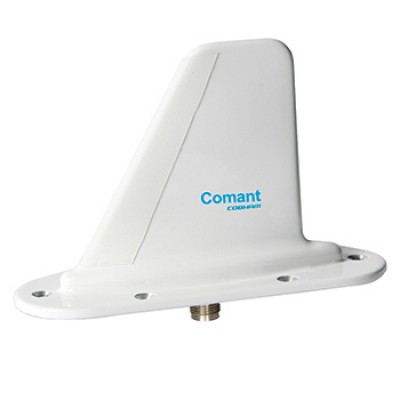

Comant ADS-B Antenna Ci 105-17-L
$912.00/Each
Part# 11-15574
MFR Model# CI-105-17-L
MFR Model# CI-105-17-L
Overview
|
ADS-B UAT TIS-B ANTENNA/TNC Female Connector, 960 MHz-1220 MHz and 1030-1090 MHz and 978 MHz, 50 Ohms, Six Hole Mount, White. The CI-105-17L broadband antenna is designed for DME or transponder use and covers frequencies from 960 MHz to 1,220 MHz. It has a TNC female connector, a six hole mount and a 50 ohm resistance. This antenna assembly is encased in a glass reinforced polyester molded shell. This antenna can be used on single and twin engine piston aircraft for applications requiring this antenna design. Ideal for upcoming ADS-B FAA mandate, this is the only antenna of its kind, capable of both IN and OUT processing. Single connector blade antenna that can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S. Unlike competitive models, the CI 105-17-L utilizes standard 6-hole mounting pattern. |
Specifications
| Electrical | |
| Frequency | 960 MHz to 1220 MHz 1030 MHz to 1090 MHz 978 MHz 1090 ± 1 MHz |
| VSWR | 2.0:1 MAX 1.5:1 MAX 1.7:1 MAX 1.5:1 MAX |
| Return Loss | 9.54 dB MAX -13.98 dB MAX -11.73 dB -13.98 dB MAX |
| Polarization | Vertical |
| Radiation Pattern | Omni-Directional |
| Impedance RF | 50 Ohms |
| Power RF | 1 KW Peak |
| Mechanical | |
| Weight | 0.3 lbs |
| Connector | TNC Female |
| Finish | Polyurethane White Paint |
| TSO-C66c, 960-1215 MHz TSO-C74d, Class A, 1030-1090 MHz TSO-C112e, 1030-1090 MHz TSO-C154c, Class A3, 978 MHz TSO-C166b, Class A, B, 1090 ± 1 MHz RTCA/DO-160G, ENV. CAT.: [F2X]A CE[R(C,C1)H(R)U2(F,F1)S(L)]XSFSXSXXXX[XXX][XX]X[XXXXXX][XX]AXX | |
| A10540 Installation Instructions Supplied with Antenna | |
