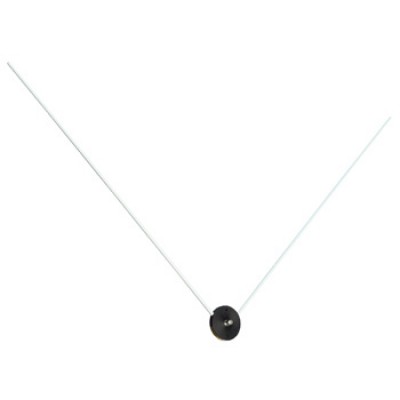

Frequency 108-118 MHz (VOR / LOC) 329-335 MHz (Glide Slope) "V" Dipole VOR/Glide Slope Antenna with detachable elements is similar to the CI 158C-3 with the exception of offering 2-hole mount instead of a 4-hole mount. This V Dipole encompasses reduced static capability with the use of P-Stat paint. Integral ferrite balun provides for higher radiation efficiency. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not approved for helicopter installations. Applications |
MODEL CI 159C V-DIPOLE | |
Electrical | |
Frequency | 408-118 MHz (VOR /LOC) |
VSWR | 3.0:1 108-118 MHz (VOR/LOC) |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms |
Power | Receive Only |
Mechanical | |
Weight | .35 lb. Maximum |
Height | 16.00 in. Maximum |
Material | Derlin Housing / Glass laminate whips / Stainless Radiators |
Finish | Black Housing / Polyurethane Enamel over P-Stat Paint |
Connector | BNC |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50,000 ft. |
Air Speed | 250 KTS TAS @ 25,000 ft. |
Federal Specification | |
RTCA Environmental | DO-160 |
FAA TSO | C34c, C38c, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
