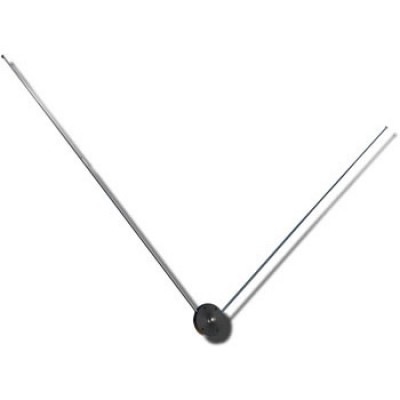

Comant VOR/Loc/GS Antenna CI-158C-2
MFR Model# CI-158C-2
Overview
|
Frequency • 108-118 MHz (VOR/LOC)
Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not approved for helicopter installations. Applications |
Specifications
MODEL CI 158C-2 V- DIPOLE | |
Electrical | |
Frequency | 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
VSWR | 3.0:1 108-118 MHz (VOR/ LOC) 3.0:1 329-335 MHZ(Glide Slope) |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical | |
Weight | .35 lb. Maximum |
Height | 17-5/8 in. Maximum |
Material | Derlin Housing/ Stainless Whips |
Finish | Black Housing/ Stainless Whips |
Connector | BNC |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50,000ft. |
Air speed | 250 Knots TAS @ 25,000 ft |
Federal Specifications | |
RTCA Environmental | DO-160 |
FAA TSO | C34e, C38e, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |

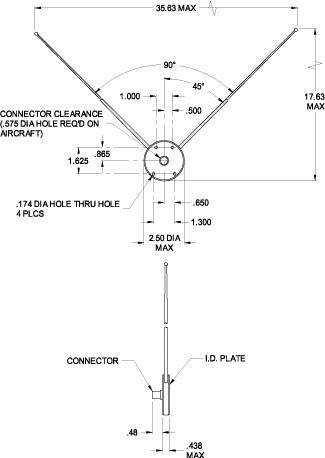

Dimensions
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The height is 17-5/8 inches for each rod and the weight is 0.35 lbs.
The CI 158C-2 has antenna's which are tapped and threaded for ease of installation and replacement. The replacement parts are not on hand, however they can be special ordered.
Per Comant: the difference is the CI-158C is made for Cessna type aircraft and has a 2 hole mounting. The CI-158C-2 is made for Beechcraft and has a 4 hole mounting.
