Frequency • 108-118 MHz (VOR/LOC)
Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. |
MODEL CI 120G/S VOR/GS ANTENNA | |
Electrical | |
Frequency | 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
VSWR | 6.0:1 108-118 MHz (VOR/ LOC) 5.0:1 329-335 MHZ(Glide Slope) |
Polarization | Horizontal |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical | |
Weight | 1.4 lb. Per Blade |
Height | 6.0 in. Maximum |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Connector | BNC/ Single Output Combiner |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50000ft. |
Air speed | 600 Knots TAS @ 25000 ft |
Federal Specifications | |
RTCA Environmental | DO-160D |
Environmental Category | [(F2)X]ACE[(T)E1P]XRXXXSXXXXXXXXXCX |
FAA TSO | C34e, C36e, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
Really good product, there is a note about needing a certain gasket with a part number. This antenna now has a gasket attached to it very nicely. No additional gasket needed.

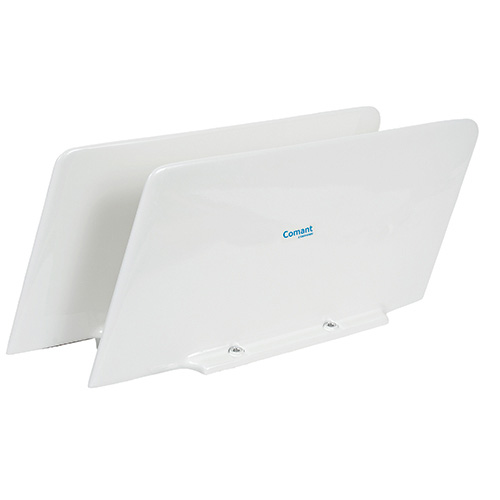

Comant CI-120G/S VOR GS Antenna BNC
