Comdat GPS/XM - CI-420-16

$1392.00/Each
Quantity
Add to Wishlist
Part# 11-06799
MFR Model# CI-420-16

Overview

Frequencies • XM 2332.5-2345.0 /26-30 dB Gain

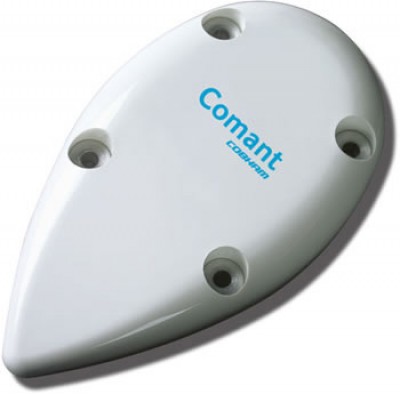

Comant’s ComDat® XM Weather antenna designed for Heads Up Technologies (HUT) receivers with longer coaxial cable runs . Features robust TNC female connector.

Conforms to the popular teardrop footprint standard on many general aviation aircraft and business jets.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 420-16
XM Weather data Specifications
Frequency
2332.5-2345.0 MHz
VSWR
1.5:1 Maximum
Polarization
LHCP
Radiation Pattern
Hemispherical
Impedance
50 Ohms
Gain
26-30 dB
DC Voltage
4 V Min./ 4.7 V Typical / 5.5 V Max.
DC Current
25mA Min/ 45mA Typical / 55mA Max.
Noise Figure
2.7 dB Maximum
Mechanical Environment
Weight
4.2 Ounces
RTCA Env./ TSO
DO 160-D
Connector
XM-TNC (Female)
