Comdat GPS/XM - CI-420-10

$1333.00/Each
Quantity
Add to Wishlist
Part# 11-06798
MFR Model# CI-420-10

Overview

Frequencies • XM 2332.5-2345.0 /25.0 dB Gain

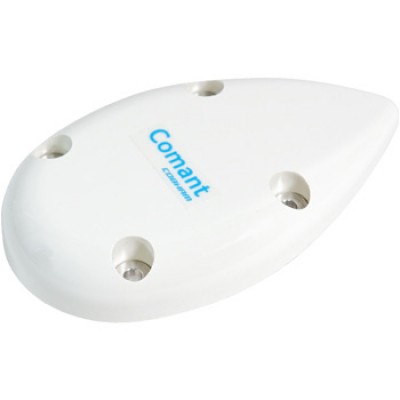

Comant’s ComDat® XM Weather antenna designed for Garmin GDL 69/69A receivers and Heads Up Technologies
(HUT) receivers with short coaxial cable runs. Feature
robust TNC female connector.
Conforms to the popular teardrop footprint standard on many general aviation aircraft and business jets.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 420-10
XM Weather Data Specifications
Frequency 2332.5-2345.0 MHz
VSWR 1.5:1 Maximum
Polarization LHCP
Radiation Pattern Hemispherical
Impedance 50 Ohms
Gain 25 +/- 2 dB
DC Voltage 3.6-24 Volts
DC Current Min/ Max 35mA / 55 mA
Noise Figure 2.7 dB Maximum
Mechanical
Weight 4.2 Ounces
RTCA/Enviornmental DO 160D
Connector XM-TNC (Female)
