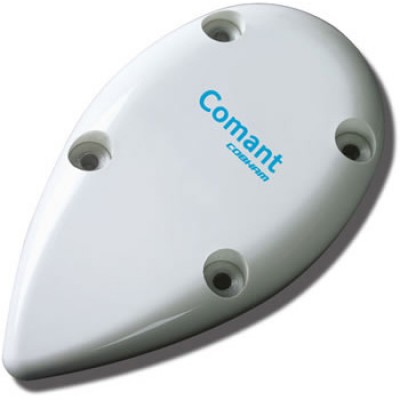

- Photo may represent series and not specific product
- SHARE
Comant GPS Antenna CI-420-220
MFR Model# CI-420-220
Overview
|
Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the popular teardrop footprint found on many general aviation aircraft and business jets. Meets RTCA DO 160D operating standards including direct effects lightning. Designed to operate with 26.5 dB panel mount GPS receivers. Certified FAA TSO-C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not compatible with most portable GPS receiver systems. Applications Frequencies Covered |
Specifications
MODEL CI 420-220 | |
GPS Preamplifier Characteristics | |
Frequency | 1575.42 MHz |
VSWR | 1.5:1 Maximum |
Polarization | RHCP |
Radiation Pattern | Hemispherical |
Impedance | 50 Ohms |
Gain @ 1575.42 MHz | 26.5 - 31.5 dB Maximum |
DC Voltage | 4 - 24 Volts |
DC Current | 20 mA Minimum / 40 mA Maximum |
Noise Figure | 3.8 dB Maximum |
Selectivity | -35 dB Min. @ Satcom 1626.5 |
Burnout Protection | 30dBm / 1.0 CW Unmodulated |
Mechanical / Environmental | |
Speed / Altitude | 330 KIAS Maximum @ Sea Level |
Weight | 4.2 Oz. Maximum |
RTCA Environmental | DO-160D |
FAA TSO | C144 |
FAA MOPS | DO-228 |
