Dorne DM N48-1 Nav Antenna

$3359.00/Each
Quantity
Add to Wishlist
Part# 11-02771
MFR Model# DM N48-1

Overview

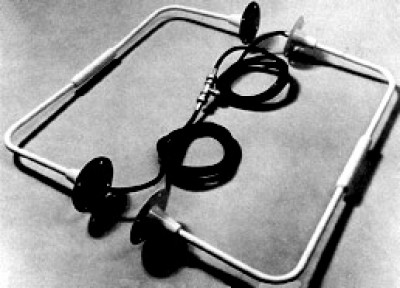

VOR/LOC BAL LOOP "TOWEL BAR"
Frequency 108 - 118 MHz

The DM N48-Series balanced loop design assures an omnidirectional radiation pattern at the horizon to obtain the maximum signal for atandard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters operating up to 250 mph.

The DM N48-3 antenna utilizes a phasing coupler which enables ease of installation if an access panel is not available or if the vertical stabilizer is so narrow at the point of installation it makes it necessary to install the antenna with both cable leads forward or aft.

Dual VOR receiver operation is obtained when the antennas are used with the DM H21-1 diplexer.

Specifications

  • Frequency Range: 108 - 118 MHz
  • VSWR: 5.0:1
  • Impedance: 50 Ohms
  • Polarization: Horizontal
  • Radiation Pattern: Omnidirectional
  • Weight: 1.12 lbs (0.51 kg)
  • Connector BNC: Male
  • dc Resistance: Open Circuit
  • Finish: White Polyurethane
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the DM N48-1 antenna FAA 8130-3?

8130-3 form is not included in the box. It can be furnished with the item if requested in the shopping cart at time of checkout.
