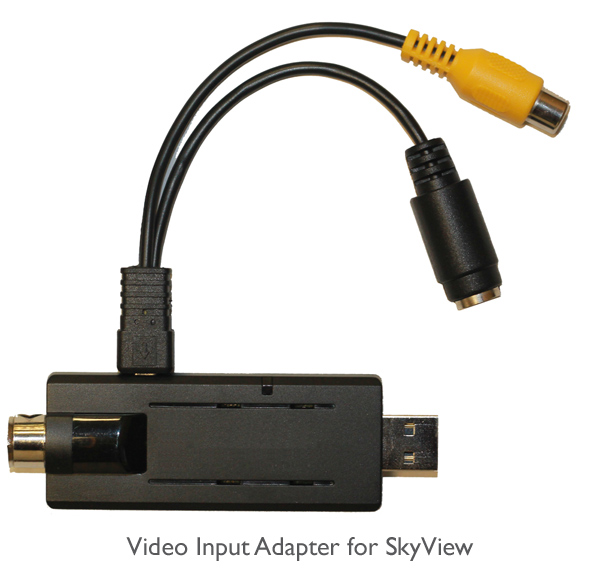

Dynon Skyview USB Video Input Adapter

$318.00/Each
Part# 10-05772
MFR Model# 102211-000

Overview

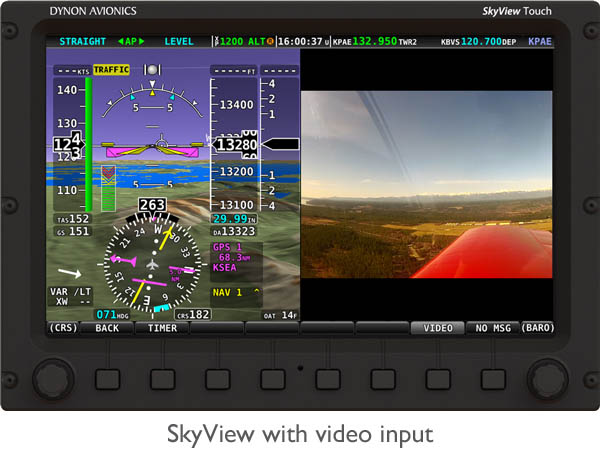

With SkyView 11 Software, all SkyView Touch and new SkyView screens can display video in both full-screen and split-screen formats when equipped with a Video Input Adapter. Video sources connect via s-video or composite input. Both NTSC and PAL formats are supported for worldwide compatibility.

Reviews

It works fine, but the connectivity with the USB Mini connector and the cinch connector is not safe.

Lightwing A Verified Purchase

Dynon Skyview USB Video Input Adapter

July 1, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these Dynon Skyview USB video adapters need an external power source?

No, these devices are directly connected to an individual SkyView display and are powered by the display.

Q: Are these Dynon Skyview USB Video Input Adapters compatible with Dynon Skyview HDX MFDs?

Yes, these video adapters are compatible with the Skyview HDX MFDs

Q: Will this work with all Skyview Classic serial numbers?

Per the product description, all Skyview Touch and New Skyview Screens can use this.

Q: Is the camera enabled thru hdx on-screen menus? Or by a separate switch? Or are both options?

It is done via on-screen menus. Video is one of the SPLIT CONTENT options on the DISPLAY page. When an external video device is connected to the adapter and properly configured, the video can be activated by selecting DISPLAY (Button 7) on the Main Menu, then selecting the VIDEO icon in the SPLIT CONTENT group.
