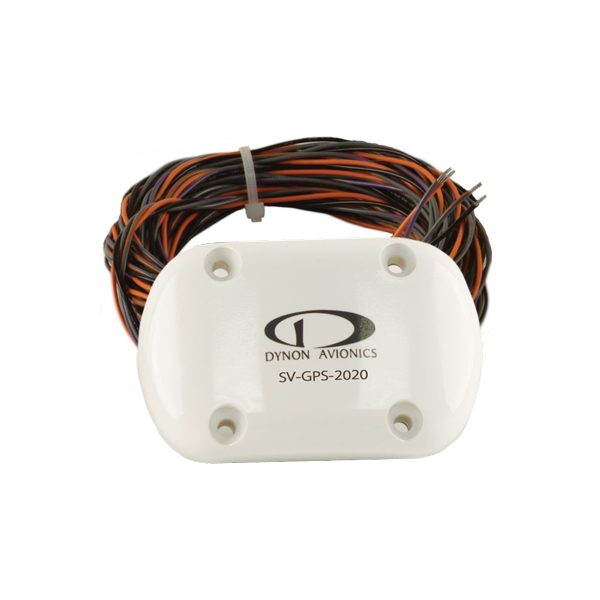

Dynon Skyview SV-GPS-2020 GPS Receiver / Antenna

$1344.00/Each
Part# 10-05909
MFR Model# 102749-000

Overview

The SV-GPS-2020 GPS Receiver/Antenna from Dynon Avionics allows existing and SkyView and Advanced AF-5000 series customers to add a 2020-compliant GPS position for ADS-B Out. As a drop-in replacement for the existing SVGPS-250 receiver, existing customers do not need to run any additional wires, coax, or install any new boxes in their aircraft.

When combined with Dynon’s SV-XPNDR-261 Mode-S transponder, SkyView and Advanced Flight Systems customers meet all the transponder and ADS-B Out requirements. Pilots can also add the SVADSB-470 Traffic and Weather Receiver for the best possible situational awareness in their aircraft.

Features

  • GPS Navigation
  • Synthetic Vision
  • 2-Axis Autopilot
  • High Resolution Terrain
  • Redundancy
  • Pilot-Designed Interfaces
  • Engine Monitoring
  • Worldwide Navigation Data
  • Weather
  • Traffic
  • ARINC-429
  • Mode-S Transponder (with ADS-B Out)
  • 3-Year Warranty
  • Integrated COM Radio
  • 2-Place Stereo Intercom

Specifications

  • Size: 2.19” W x 0.75” H x 3.44” D
  • Weight: 7 oz
  • Maximum Velocity: 400 knots
  • Update Rate: 4 Hz
  • Temperature: Storage -40 °C to +70 °C
  • Operating -30 °C to +60 °C
  • Source Integrity Level (SIL): 3
  • Interface: 115,200 baud RS-232 NMEA
  • Output w/ integrity dataTransponder Compatibility: SV-XPNDR-261
SV-GPS-2020 + SV-XPNDR-261 System
  • System Design Assurance (SDA): 2
  • Compliance: Meets FAR section 91.225, 91.227 and performance requirements of TSO-c166b
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

beautiful!

Robin M Verified Purchase

Dynon Skyview GPS 2020 ADS-B Antenna Receiver SV-GPS-2020

October 30, 2024

This is a little less than purchasing direct from Dynon.

Thomas S Verified Purchase

Dynon Skyview GPS 2020 ADS-B Antenna Receiver SV-GPS-2020

September 30, 2024

It worked just fine.

Lowell T Verified Purchase

Dynon Skyview GPS 2020 ADS-B Antenna Receiver SV-GPS-2020

February 11, 2023

Looks good

Jorge A Verified Purchase

Dynon Skyview GPS 2020 ADS-B Antenna Receiver SV-GPS-2020

December 17, 2022

The new Dynon GPS was easy to install and works great. Aircraft Spruce service also great.

Michael L
April 25, 2019

Quick shipping, easy online ordering.

Jimmie B
February 10, 2019

This fixed my issue I had, I had gotten the GPS-250 with my Skyview system and it worked great but didnt now it wasnt talking to ATC out the transponder. I replaced the 250 with the 2020 and it now compliant. Dynon should just stop selling the 250, its too confusing when ordering and I think the price is too high for the certification.

Darrin T Verified Purchase

Dynon Skyview GPS 2020 ADS-B Antenna Receiver SV-GPS-2020

February 28, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does installation manual come with Dynon gps 2020?

No it does not. That installation instruction can be found in the dynon skyview instructions.

Q: What size are the flathead screws that mount the antenna?

Per the manual it states you need #8 screws with 100 degree countersunk heads.

Q: How long are the wires?

18 ft./5.49 meters
