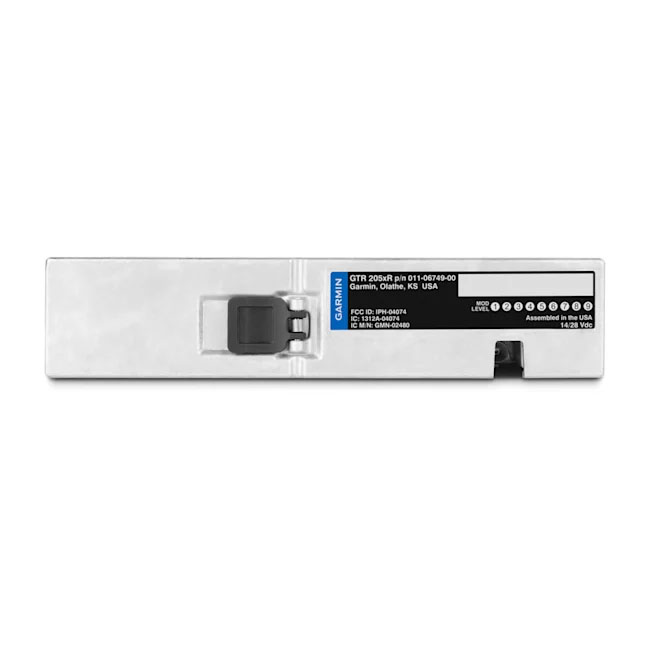

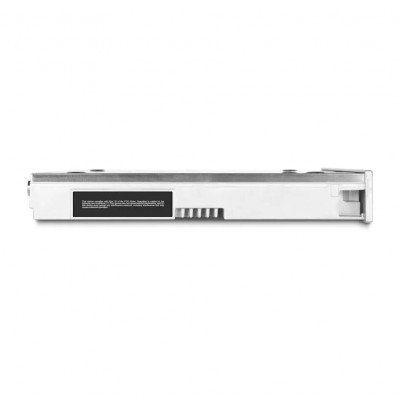

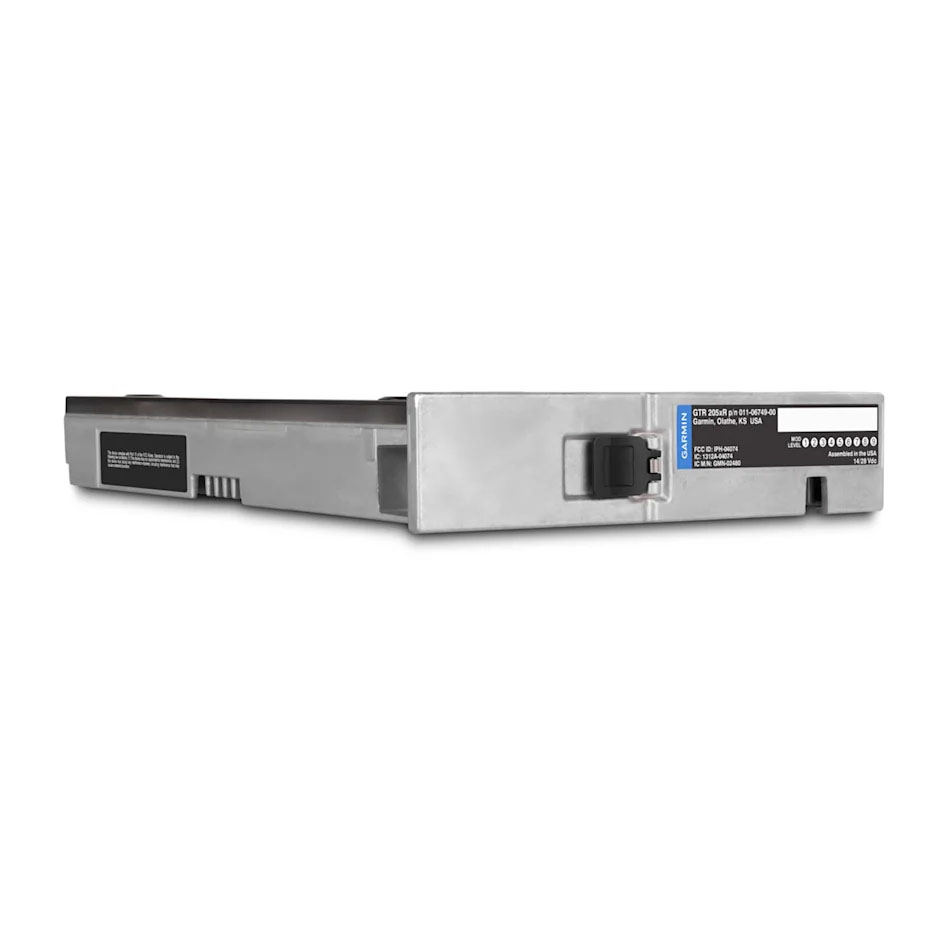

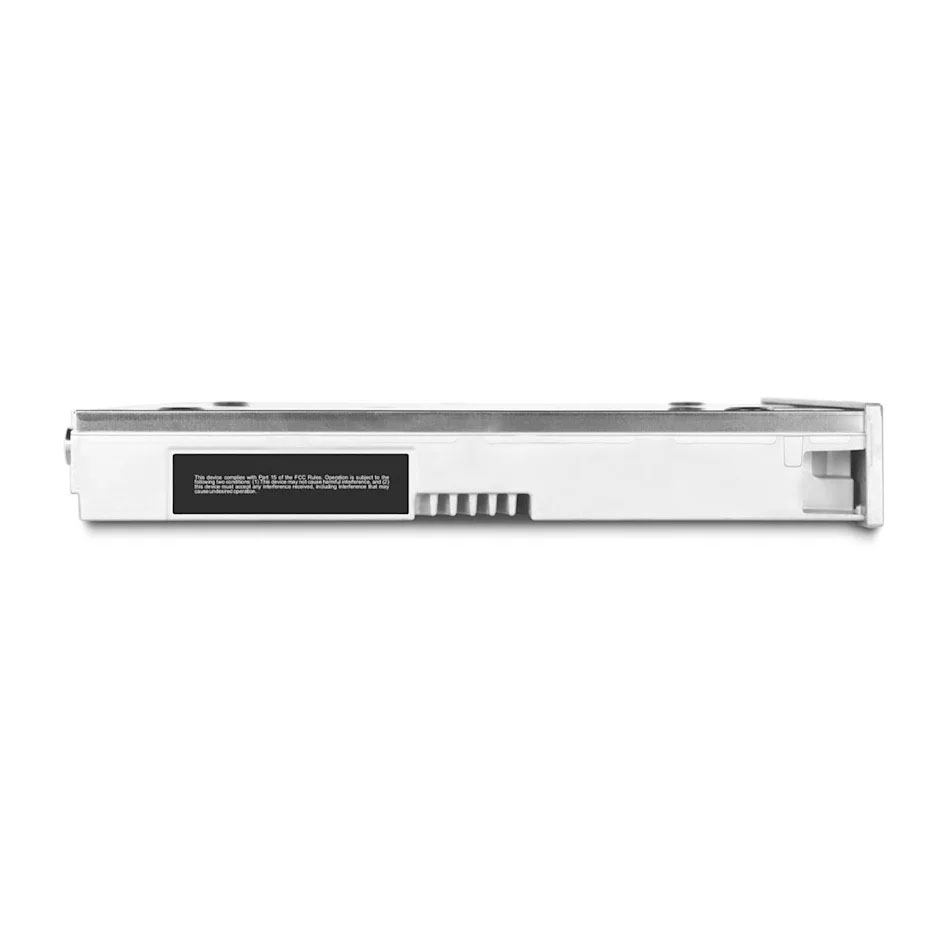

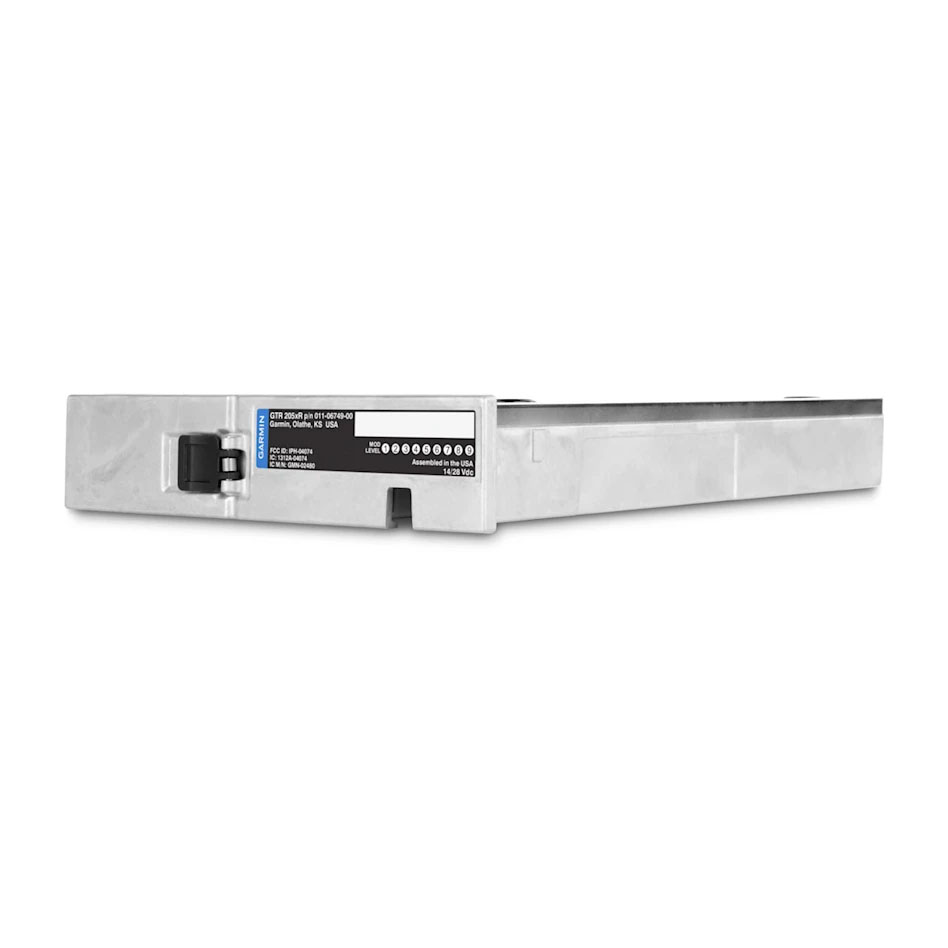

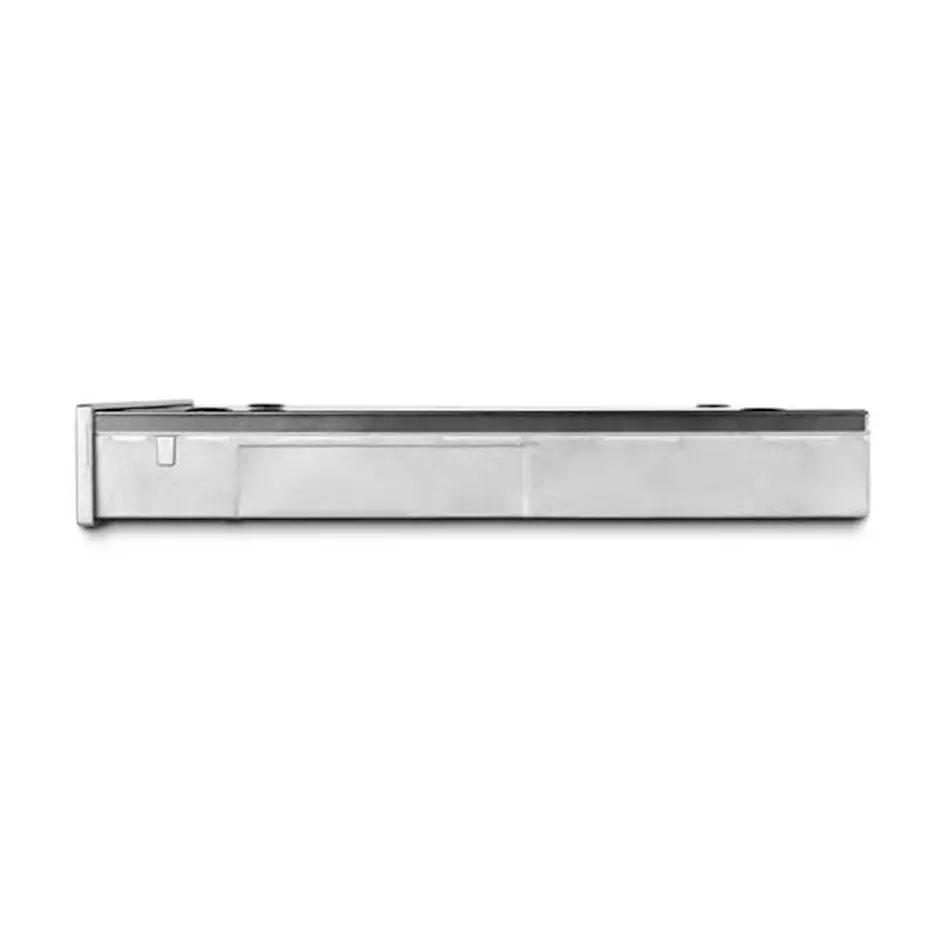

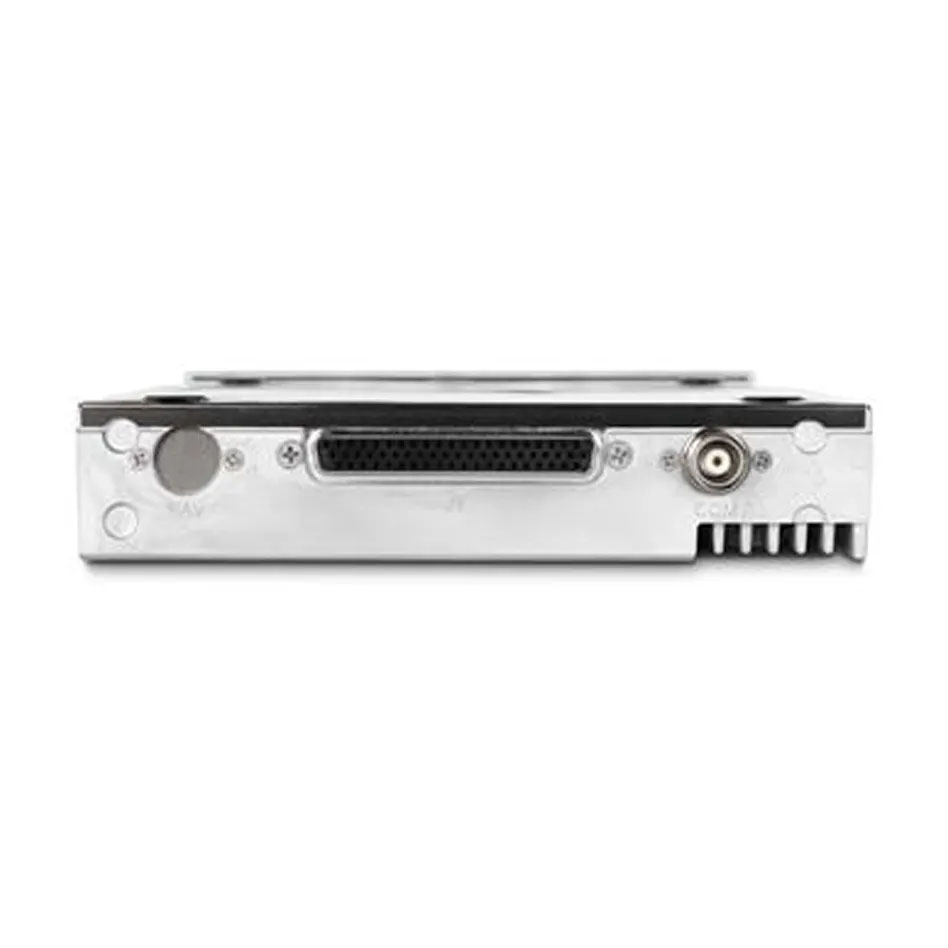

Garmin GTRŪ 205xR Remote Mount VHF COMM Radio For Experimental Aircraft

0 Reviews 0 Answered Questions
$2258.00/Each
Quantity
Add to Wishlist
Part# 11-20348
MFR Model# 010-03396-01

Overview

Save space with the remote-mount GTR 205xR COMM radio, and add advanced communication and audio capabilities to your panel. Pilot-selectable 25 kHz or 8.33 kHz channel spacing provides global capability. The radio features a sunlight-readable color LCD display, indicating the currently tuned active and standby frequencies, as well as their station ID – such as KOJC TWR or KSLE ATIS. The vibrant display as well as the dual concentric knob and backlit keys mimic those found on other modern Garmin avionics products, providing an intuitive user interface and simplifying product operation.

Adding advanced communication capabilities to any panel, the GTR 205 is an optimized and cost-effective solution. The 2,280-channel capable VHF COMM radio comes standard with 10 watts of power. Additionally, pilots can monitor a standby COMM frequency while tuned to the active frequency, allowing them to perform various tasks such as listening to ATIS transmissions without leaving the active ATC frequency.

The worldwide frequency database makes it convenient to find frequencies by searching an airport identifier. Frequency memory and instant recall make tuning to the most often or recently used frequencies quick and efficient, plus holding down the volume knob will quick-tune to the emergency channel 121.5. To assist with approaches, holds or other assigned maneuvers, the GTR 205 includes a built-in timer, with the option to count up or count down.

Features

  • Small panel? The slim 1.35in height fits your aircraft with ease.
  • See your frequencies clearly on a large, bright, full-color LCD display.
  • Itfs easy to use, with a familiar, intuitive interface.
  • Find your facility frequency with the worldwide database.
  • Monitor your standby COMM frequency.
  • Quickly tune to the 121.5 emergency frequency with a single touch.

Specifications

  • Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
  • Frequency range: 118.000 to 136.992 MHz
  • Transmit power: 10 watts (16 watts with optional enablement)
  • Input voltage range: 9 to 33 VDC
  • Operating temperature range: -20 to +55 C
  • Dimensions: 1.35in H x 6.25in W (3.43 cm x 15.88 cm)
  • Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
  • Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors

Documents

In The Box

  • GTR 205xR
  • Installation rack
  • Backplate kit
  • Pilot's Guide
