Icom A25C Sport VHF Air Band COM Radio - AA Battery Pack

$449.95/Each
Quantity
Add to Wishlist
Part# 11-16533

Overview

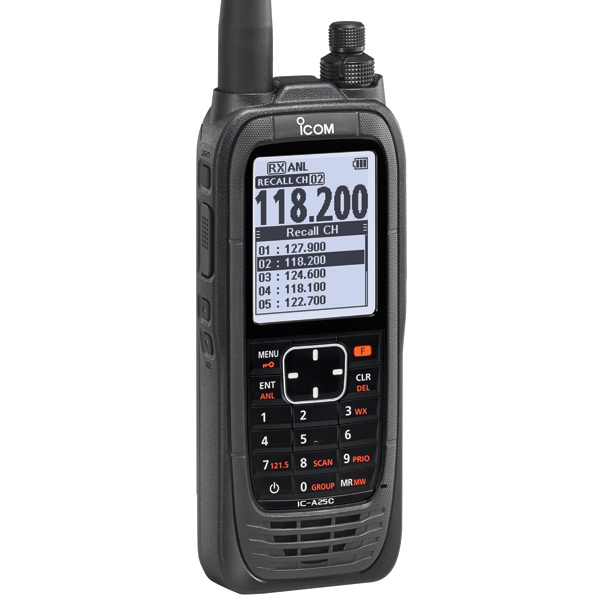

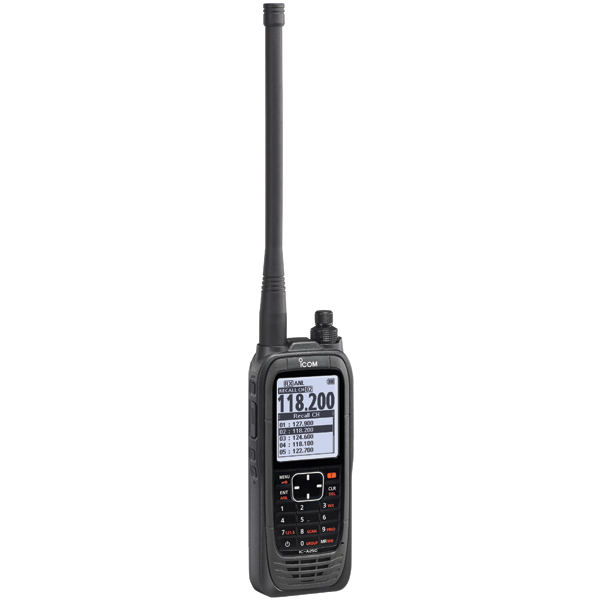

The A25C is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation.
  • Output power: 6W typ. (PEP), 1.8W (CW)
  • Frequencies:  TX (COM); 118.00-136.975MHz
                          RX (COM) ; 108.00-136.975MHz
                          RX (Weather); 161.650-163.275MHz
  • Channel spacing: 8.33/25KhZ
  • Channels: 200 (20CH x 10 banks)
  • Battery life: Communications only aviation handheld 6W and AA battery pack
  • Version: Communications only
Large easy to use LCD
The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.

Features

  • IP57 dust-protection and waterproof construction
  • "Flip-flop" channel recall
  • Smart battery with detailed battery status
  • 121.5MHz emergency key
  • Weather channels
  • Priority watch
  • VFO scan, memory-channel scan, priority scan
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function
  • Internal VOX capability

Specifications

General
COM A25C
COM channels
Frequency Coverage
   Tx
   Rx
   RX (Weather)
A25C
118.000-136.975 MHz
118.000-136.975 MHz
161.650-163.275 MHz
Channel spacing 25/8.33 kHz
Type of emission 6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately)
   Tx High
   Rx Max. audio/Stand-by

Less than 1.8 A
Less than 500 mA/90 mA typ.
Antenna impedance 50 Ω
Operating Temperature Range –10°C to +60°C; 14°F to 140°F
Dimensions (W×H×D)
(projections not included)
58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in
Weight (approximately) 340 g; 12.0 oz (with BP-288)
Transmitter
Output power (at 7.2 V DC) 6.0/1.8 W typical (PEP/carrier)
Audio harmonic distortion Less than 10% (at 60% modulation)
Hum and noise ratio More than 35 dB
Spurious emissions More than 46 dB
(Exclude fc±62.5 kHz for AM mode)
(Exclude fc±20.825 kHz for AM-N mode)
Frequency stability ±0.4 kHz
Receiver
Intermediate frequencies
   1st
   2nd

46.35 MHz
450 kHz
Sensitivity (typ)
   COM (6 dB S/N)
   WX (12 dB SINAD)

Less than 0 dBμ
Less than –8 dBμ
Squelch sensitivity (at threshold) Less than 0 dBμ (AM), Less than –5 dBμ (FM)
Audio output power More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
Hum and noise More than 35 dB (at 30% modulation)
Spurious response More than 60 dB (AM), More than 30 dB (FM)
Audio output power More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
Ext. speaker connector 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

In The Box

  • Icom A25C Transceiver
  • FA-B02AR antenna
  • BP-289 Alkaline Battery Pack
  • MB-133 belt clip
  • Hand strap
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

So much better than the Sportys radio

Dave S Verified Purchase

Icom A25C Sport Radio With Aa Battery Pack

May 17, 2022

David S Verified Purchase

Icom A25C Sport Radio With Aa Battery Pack

October 19, 2021

Does what it says it does.

Paul C Verified Purchase

Icom A25C Sport Radio With Aa Battery Pack

September 7, 2021

Dave M Verified Purchase

Icom A25C Sport Radio With Aa Battery Pack

August 24, 2021

Great radio so far. I have gone through 1 set of batteries, and definitely plan on getting an ac/dc charger for it. My use with it to this point has only been ground use. I have not had a chance to take it in the air yet. This is my first hand held radio, so I dont have anything to compare it to. That being said, I would recommend and buy this one again.

Shannon E
January 28, 2021

When I received this unit, it was complete. Thank you..!!!

Barry J
February 23, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between the IC-A25C and the IC-A25C Sport? Other than the price...same specs?

The IC-A25C has a rechargeable lithium battery and the IC-A25C Sport has a AA battery pack.

Q: With intermittent transmit & receive what is the expected battery life in minutes with AA batteries in the Icom A25C radio?

The battery life is approximately 600 minutes.

Q: Is there an ac adapter to power the Icom A25C for a 110V outlet?

Yes, please view p/n: 11-15468

Q: Does the ICOM A25C radio have a warranty?

All ICOM handheld radios have a three (3) year warranty from factory defects and workmansip with one (1) year for accessories (batteries, wall chargers, antennas)

Q: Does this radio need the channels to be programmed in by a professional or is it ready to use out of the box?

It is ready for use out of the box.

Q: ICOM A25C SPORT VHF AIR BAND COM RADIO - AA BATTERY Part# 11-16533 MFR Model# A25C SPORT can this be connected to airplanes external antenna?

PER ICOM: the A25C can connect direct to the external antenna cable as long as the connectors match or an adapter would be needed.

Q: Is this communication only version the same as a transceiver type radio and just doesn’t have navigation abilities?

Yes, this is transceive only. No nav.

Q: Will the headset adapter from a ic-a3 work or does it need a special head set adapter?

No, the IC-A3 headset adapter is not listed as compatible. You would need to use OPC-2379 or the Pilot USA PA-82/A25.

Q: Can a headset be connected to the Icom A25C Radio?

Yes, it can be connected using the included headset adapter.
