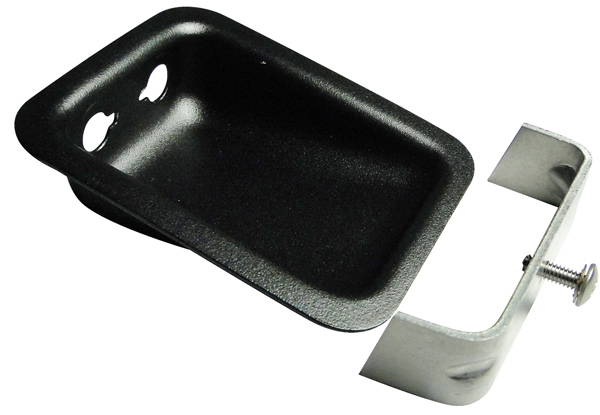

2 Hole Recessed Mic & Phone Jack Housings
Overview
| This versatile mic and phone jack housing has a powder coat finish. With this recessed housing in place in a side panel, your jacks are out of the way. Comes with a clamp to hold housing securely in place. Jacks not included. |
Specifications
- Dimensions: W 2.9" x L 3.56" x H 1.06" (to outer edge of flange)
- Holes: .380 dia. x 1.0" between center
- Weight: 32 grams
Reviews
Worked well
Verified Purchase
Mic & Phone Jack Housing - Color Black
AS described. As always great service
Verified Purchase
Mic & Phone Jack Housing - Color Black
Quality material, great price.
A great recessed housing for having mic phone jacks out of the way. Designed for standard 3/8” dia. mic & phone jacks or modify holes diameter if needed. Aluminum material can be easily bent for plug alignment if needed. My requie some modification for some installations.
These work well ... Long headset leads are very tight such as Bose connectors
Verified Purchase
Mic & Phone Jack Housing - Color Black
Nice metal housing that allows the rear seats on a cherokee 140 to swing up for maintenance without hitting the housing. The holes for the jacks need to be made larger for isolating washers to fit. Prefer to have the hole size as an option when buying.
I knew I wanted my jacks to be recessed but I couldn’t for the life of me figure out where the screw went into the unit. What’s missing in the explanation is that you have to drill a hole in the unit. They have a really nice picture diagram what to do but for some reason AC spruce didn’t upload that.
I had problems using this product, the finish and quality is good. However the holes for the isolated jack are not big enough, i ended up drilling a larger hole to accommodate the isolation shoulder washer needed for microphone jack. As designed for a recessed mounted panel good luck getting a standard David Clark 13.4 to connect, the rubber plug is too long for easy install. I ended up flipping it around a mounting on the surface of the panel and making a custom attachment bracket, so i ended up with a non-recessed custom made unit that took me several extra hours to install. Anyhow that is my experience.
Verified Purchase
Mic & Phone Jack Housing - Color Beige
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For this housing, part numbers 11-01140, 11-01150, and 11-01160, the retaining clamp has a height of .75". However, in order for the housing to mount flush it must be installed into a space with a height of 1.06" by a width of 2.9".
These are made of aluminum.
