Home / Avionics / ELTs & PLBs / ELTs / Kannad /Kannad Integra Ameri-Fit Pack AF EVO USA
Main Image

Kannad Integra Ameri-Fit Pack AF EVO USA

0 Reviews 3 Answered Questions
$2441.00/Each
Quantity
Add to Wishlist
Part# 11-18969
MFR Model# 1002828

Overview

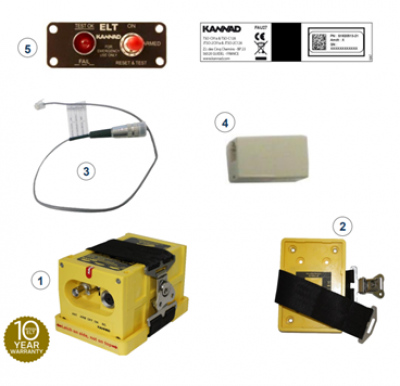

Kannad Integra Ameri-Fit Pack Af Evo USA

Application

  • Automatic Fixed Emergency ELT with G-Switch sensor
  • Two-frequency ELT (121.5 / 406 MHz)
  • COSPAS-SARSAT Class 2
  • Small & light ELT
  • Internal GPS
  • Unique internal 406MHz back-up antenna
  • Programming dongle
  • Maximum reliability, minimize size/weight
  • ARM/OFF/ON switch, red LED, Internal Buzzer & Outside Buzzer option
  • Operates at temperature as low as -20°C with 24 hour certified transmission on 406MHz (distress) signal and over 48 hours on 121.5MHz (homing) signal
  • No power supply required
  • Battery replacement interval every 6 years, accessories directly powered by ELT battery
  • Choice of Remote Control panels with 3-wire & 2-wire installation options
  • DIN12 socket for remote control panel (RCP) and pin programming dongle option, BNC antenna connector
  • Quick & easy retrofit with universal mounting bracket
  • EASA minor change approval available for most common aircraft
  • Option to connect to a panel-mounting GPS using the NMEA Integra e-Nav
  • TSO/ETSO Approved: TSO C126A, C142a / ETSO 2C91a, 2C126, C142a
  • Aircraft version

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the Kannad Integra Ameri-fit Pack work in Mexico?

Yes, this will work in Mexico.

Q: I am looking to purchase this Kannad unit (Integra Ameri-Fit Pack AF EVO USA) to replace an old AmeriKing AK 450 unit. Will I need to purchase an antenna? Which one? Can I specify remote control panel RC103 which will fit into the existing panel slot? Thanks!

Yes, you will need an antenna that can run both frequencies, see part # 11-12892.

Q: Does Part # 11-18969 comes with antenna or do I have to order Part # 11-12892 antenna also?

No this is a retrofit kit for the Ameri-king units. Part # 11-12892 is a good choice.
