PS Engineering Mb 10 Marker Beacon Receiver (Remote)

$1956.00/Each
Quantity
Add to Wishlist
Part# 11-10014
MFR Model# 050-023-0101

Overview

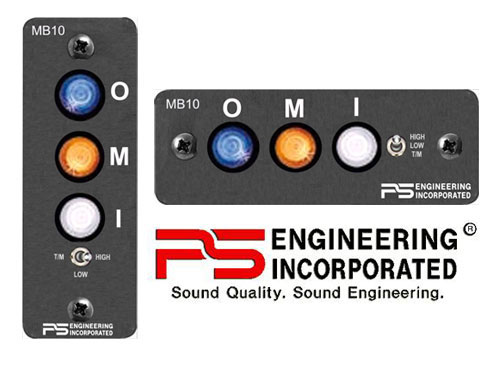

The MB10R is remote mounted 75 MHz Marker Beacon receiver capable of activating either panel mounted lamps (not included), an electronic display system, or both.

Note: The MB10R has provisions for remote mounting the Marker Mode selector (Hi-/Lo-Test/Mute). This must be an On-Off-Momentary On switch. Connect Pin 15 to ground to place the unit in High Sense, and momentarily ground Pin 13 to mute the marker audio. Holding this pin low for 1-second will test the lamp circuits.



*In certified aircraft, the warranty is void unless the product is installed by a PS Engineering dealer.

Specifications

  • Height: .95 inches
  • Width: 2.80 inches
  • Depth: 4.85 inches
  • Warranty: 1 year
  • Unit is TSO'D
