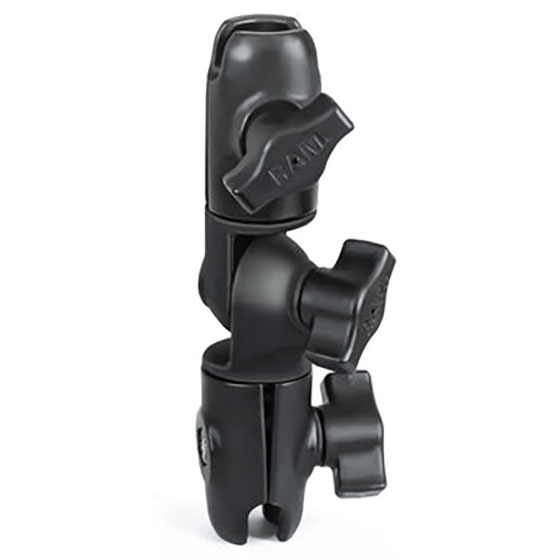

RAMŽ Composite Double Socket Swivel & Ratchet Arm

1 Review 0 Answered Questions
$32.50/Each
Quantity
Add to Wishlist
Part# 11-16193
MFR Model# RAP-B-200-2U

Overview

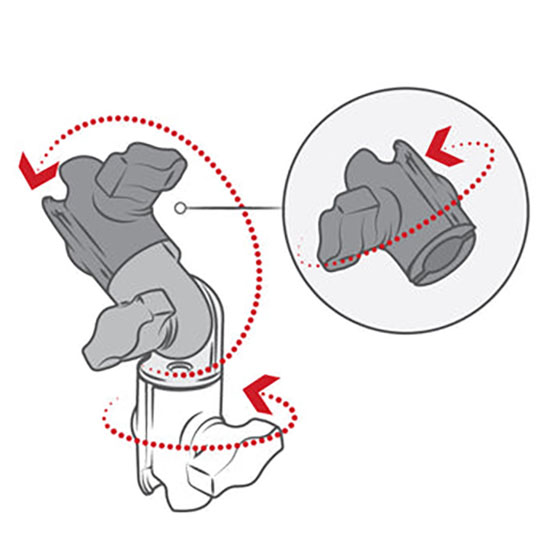

The RAP-B-200-2U consists of double 1" B size diameter open sockets with a 360-degree center rotation point and a connecting 180-degree swivel joint. The central pivot point provides unsurpassed adjustability for 1" B size ball bases, device holders, and adapters that are connected via the sockets.

Features

  • Double socket swivel and ratchet arm features 360-degree center rotation and 180-degree swivel joint with an overall length of 6.25" and a socket-to-socket length of 5.5"
  • Attaches to any B size RAMŽ ball component, including mounting bases and device holders
  • Double ball and socket technology allows for near-infinite adjustability of your RAMŽ mounting system
  • Backed by a lifetime warranty

Specifications

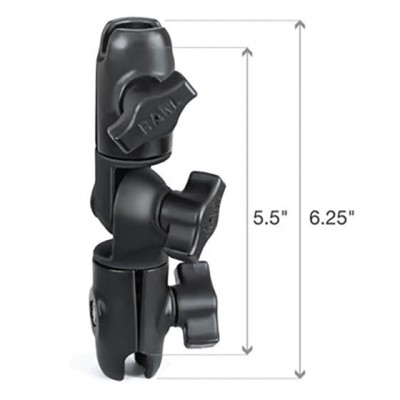

  • Product Dimensions: Overall Length - 6.25"
  • Socket to Socket Length: 5.5"
  • Ball size: B size (1")
  • Weight Capacity: Standard use - 2 lbs
  • heavy-duty use: 1 lb
  • Materials: High Strength Composite
  • Packaging Type: Poly Bag
  • Weight: 0.42 lb
