The solar-powered AV-70 is a field-proven aviation light that offers enormous benefits over the traditional battery and hard-wired aviation lights including low maintenance and no underground wiring.

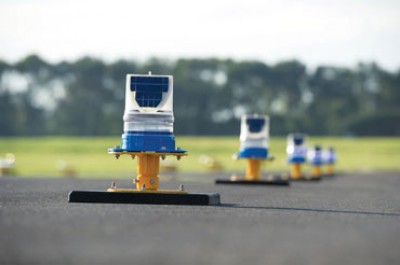

These completely self-contained LED lights are designed to suit a range of aviation and general applications including an emergency airstrip, caution, taxiway, and threshold lighting. The unit has two high-performance solar modules mounted within the lens, which maximize solar collection and provide reliable operation in a range of environmental conditions. The focal plane of the light is designed to provide a vertical divergence of between 0 to +7 degrees and the user-replaceable battery ensures a service life of up to 12 years. The AV-70 is made from tough, durable UV stabilized LEXAN® polycarbonate, and incorporates an internal photodiode for automatic night activation once the ambient light threshold drops sufficiently. Completely self-contained and able to be installed in minutes, the AV-70 is the preferred choice for marking of indigenous, regional and mining airstrips around Australia, and remote airfields globally Mounts are not included. |
Well Worth the money Battery last for years maintenance free

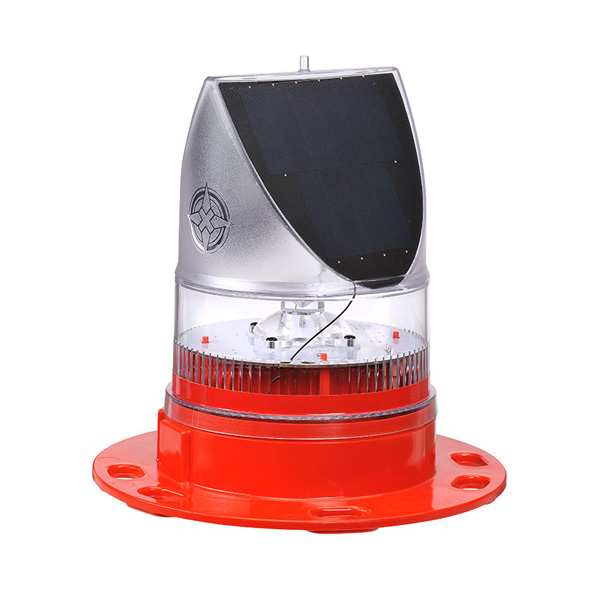

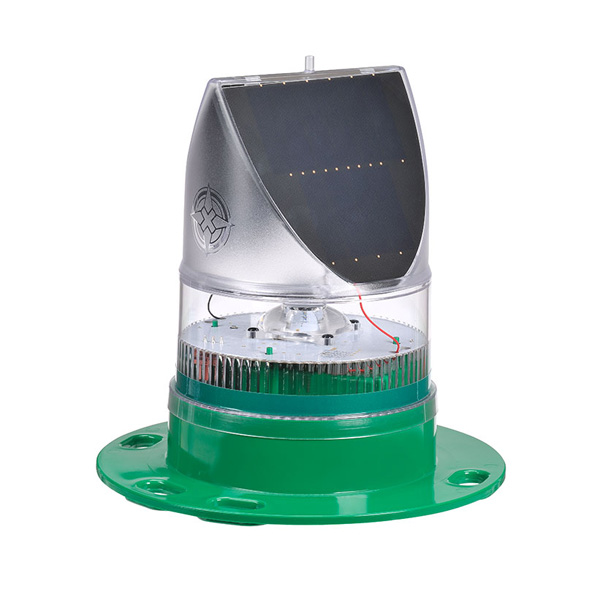

12 LED Solar Aviation Light Red/Green
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The circular base has a 9" diameter. The height is 9-1/2".
Each light has 12 LEDs inside. They are priced and sold individually so an order for 1 will ship 1 light assembly.
All solar aviation lights come with an external on/off switch. The time each light will last depends on the amount of sunlight accumulated during the day.
Weight: 1.4 kg (3.125 lbs), candela output: 13.9 peak
