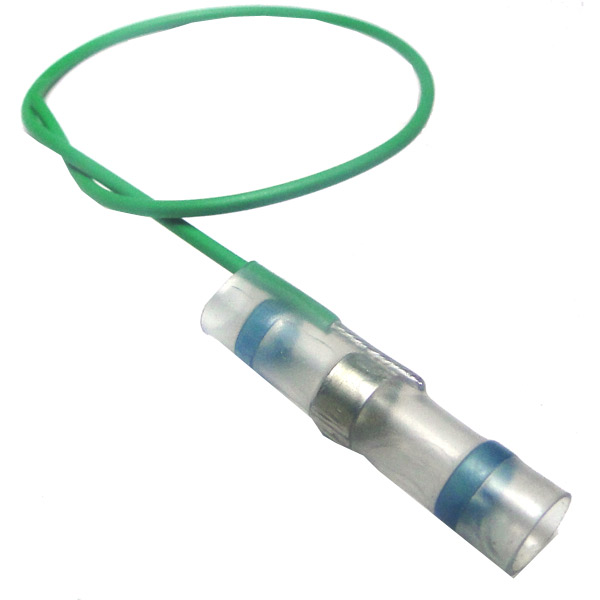

Te Soldersleeve With Pre-Installed Lead

$5.35/Piece
Quantity
Add to Wishlist
Part# 11-16370
MFR Model# CWT-5-W122-5

Overview

SolderSleeve shield grounding terminators provide an environmentally sealed, insulated, and encapsulated solder connection for a variety of applications.

Features

  • Product Type: Shield Terminator
  • Temperature Indicator Type: Thermochromic
  • Temperature Indicator: Yes
  • Pre-Installed Lead: Yes
  • Pre-Installed Lead Type: XL Polyethylene
  • Lead Stranding: Stranded (W1)
  • Lead Plating Material: Tin
  • Lead Color: White
  • Specifications

  • Jacket Outside Diameter: 4.3 mm [.169 in]
  • Expanded Inside Diameter (Min): 4.3 mm [.17in]
  • Recovered Inside Diameter (Max): 2 mm [.079in]
  • Shield Outside Diameter (Min): 2 mm [.079 in]
  • Overall Length: 29.3 mm [1.15 in]
  • Pre-Installed Lead Wire Size (mm²): .38
  • Operating Temperature (Max)(°C): 125
  • Resistance Properties: Splash Protection
  • Wire Temperature (Max)(°C): 105
  • Government Qualified: No
    • Frequently Purchased With
    • Customers Also Viewed

    Reviews

    Q&A

    Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
