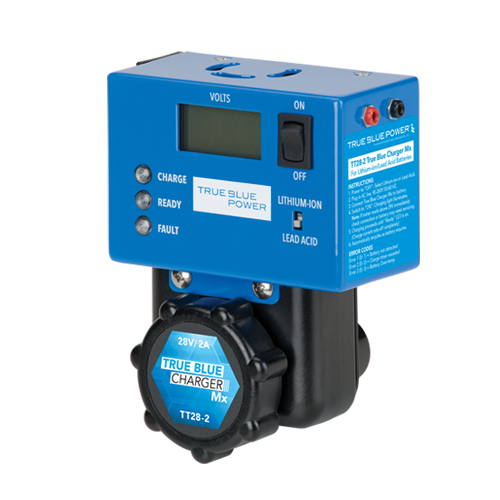

True Blue Power Charger MX TT28-2
$1973.00/Each
Part# 10-07287
MFR Model# 282-101
MFR Model# 282-101
Overview
|
Charge and maintain lithium-ion and lead-acid aircraft batteries with
the intelligent and compact TT28-2 True Blue Charger Mx.
Charge and maintain lithium-ion and lead-acid aircraft batteries with the intelligent and compact TT28-2 True Blue Charger Mx. The intelligent True Blue Charger Mx extends battery life and provides simple, safe and automatic charging for lithium-ion and sealed lead-acid aircraft batteries. The intelligent True Blue Charger Mx extends battery life and provides simple, safe and automatic charging for lithium-ion and sealed lead-acid aircraft batteries. The direct-connect, 2.5-amp charger maintains batteries of any capacity, from zero to full state-of-charge (SOC), while continuously displaying battery voltage. The highly-efficient True Blue Charger Mx can be used for standby maintenance without trickle charging. |
Features
- Charges and maintains sealed lead-acid and all True Blue Power lithium-ion aircraft batteries:
- TB17* (17 amp-hour) - TB40 (40 amp-hour)
- TB20 (20 amp-hour) - TB44 (46 amp-hour)
- TB30 (30 amp-hour) - TB60 (60 amp-hour)
Specifications
| Model Number | TT28-2 |
|---|---|
| Part Number | 282-101 |
| Input Voltage | 90 – 264 VAC, ±10% 47 – 63 Hz 1A (maximum) |
| Input Connector | IEC60320-C13 |
| Battery Charge Voltage | Lithium-ion 28.8V (maximum) Lead-acid 28.6V (maximum) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -28°C to +70°C (-18°F to +158°F) |
| Timing Accuracy | ±5% of nominal time |
| Display Accuracy | ±0.2 volts |
| Weight | 2 lbs (0.9 kg) |
| Dimensions | 4.33” W x 5.9” H x 3.8” D |
| Battery Connector | MS-3509 compatible |
| Protection and Monitoring | Overcharge and over-temperature protection Internal timer automatically monitors open-circuit voltage to determine top charge |
