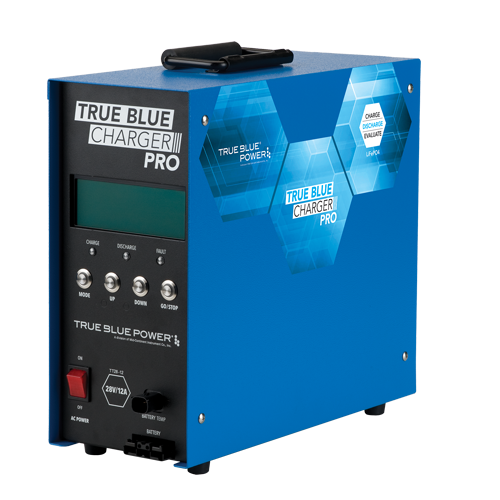

True Blue Power Charger Pro Tt28-12
MFR Model# ACM-1260-101
Overview
|
Charge, discharge and evaluate True Blue Power lithium-ion aircraft batteries with the intelligent and easy-to-use TT28-12 True Blue Charger PRO.
The ONLY battery charger to automatically discharge lithium-ion aircraft batteries to 30% state-of-charge, as required for air shipment. The True Blue Charger PRO is pre-loaded with all charge and discharge parameters for True Blue Power lithium-ion batteries, allowing maintenance personnel to safely and efficiently top charge batteries and perform scheduled capacity checks. |
Features
- Specifically engineered to charge, discharge and test True Blue Power lithium-ion aircraft batteries:
- TB17 (17 amp-hour) - TB40 (40 amp-hour)
- TB20 (20 amp-hour) - TB44 (46 amp-hour)
- TB30 (30 amp-hour) - TB60 (60 amp-hour)
Specifications
| Model Number | TT28-12 |
|---|---|
| Part Number | ACM-1260-101 |
| Input Voltage | 90 – 132 VAC or 180 – 264 VAC (switch selected) 47 – 63 Hz |
| Input Power | 8.4A at 115 VAC 4.35A at 23 VAC 15A Circuit Breaker |
| Battery Charge Voltage | Lithium-ion; 28.8V (maximum) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +80°C (-40°F to +176°F) |
| Display Measurement | To 0.1 volts, 0.1 amps |
| Display Accuracy | ±0.2 volts, ±0.2 amps |
| Weight | 29.5 lbs (13.4 kg) |
| Dimensions | 6.5” W x 14.5” H x 15” D |
| Battery Connectors | Compatible with MS-3509, 5/16” ring terminals, alligator clamps and temperature cables |
| Protection and Monitoring | Overcharge, over-temperature and time out for failed batteries, auto shut off after top charge is complete and audible alerts for low voltage and reverse polarity |
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No this is intended for Lithium ion batteries only.
Certs paperwork are not automatically included but can be requested when you place your order.
