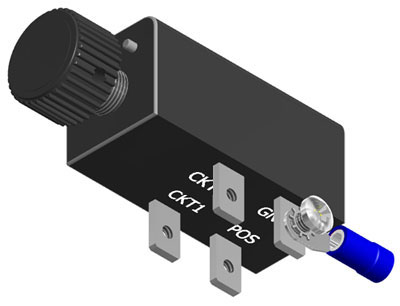

Microdim Dual Dimmer Revision Swp Short Wing Piper

$550.00/Each
Quantity
Add to Wishlist
Part# 11-11887
MFR Model# 9100-001-JSWP

Overview

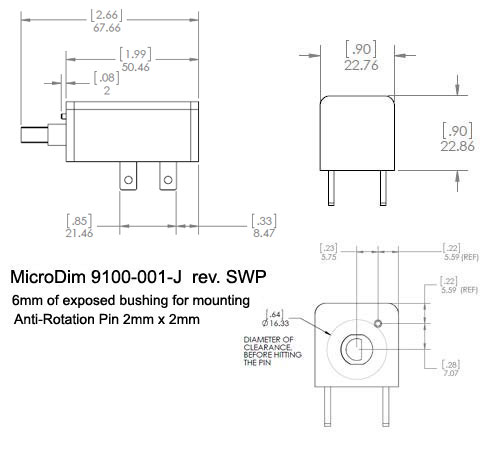

5 to 35 VDC, 0-7.5 A per channel, Control over 224 Watts per channel in a .9" Inch square by 1.9" Package.

Complete compact, light weight, powerful, solid state Dimmer and switch controller.

Microdim Dual Dimmer Revision SWP (Short Wing Piper) has all the functions you will need. Dimming on one channel and switching on channel 2 for the position lights/navigation lighting is activated any time there is output on the dimming channel.


Click Image to Enlarge

Documents

Specifications

  • Voltage Range: 5VDC to 35VDC
  • Max Current: 7.5 A per channel
  • Controlled Output: 5-35 VDC, 0 to 7.5 A, per channel
  • Two channel units, 1 dimming, 1 switched
  • Capacity:
    • 37.5 Watts @5 VDC each channel
    • 90 Watts @12 VDC each channel
    • 210 Watts @28 VDC each channel
    • 262 Watts @35 VDC each channel
  • Install with Standard Supplied solderless ring lug terminal
  • Potentiometer Rotation: 270 degrees Rotational Life: 500K Turns
  • Internal temperature Protect: +85 degrees C
  • Storage Temperature: -40 degrees C to +100 degrees C
  • Maximum Internal Temperature: @15A +15 degrees C
  • Enclosure Material: Avantra 8731 polystyrene Meets UL 94
  • Flame Rating: Meets UL94V-0 (@ 0.062"/1.5 mm min.) rating
  • Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
  • One Year limited warranty
  • Weight: 1.31 oz including knob

Features

  • Dual Channel control of Lighting - P/N 9100-001-P Rev. SWP
  • one dimming channel and one +V switching channel.
  • Smallest of all self contained Dimmer/switch Lighting control
  • For Dimming on one channel and control of other switched lighting, position/navigation, relays, egress lighting, etc.
  • No outboard heat sinks, boxes, rheostats, or other packages
  • RTCA/DO-160E SEC 21: RFE Qualified
  • Incandescent lights, LED landing lights, HID
  • UMA dimmer, EL, LED Glare shields, overheads, Avion Glare shield dimmer
  • Low level LED lighting suitable for NVG
  • Hundreds of DC Lighting Control applications
  • Assembled Totally in the USA.

In The Box

  • MaxDim Micro unit
  • Installation instructions
  • Color coded terminals
  • Reference panel label
  • Knob/s
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

I cant believe the price for all there is too this thing!!!!!!

Glenn J
July 29, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this unit have an off position?

Per the manufacturer: Full CCW (counter-clockwise) rotation will result in an off position. There is no click on our pot, but that position results in an off situation.

Q: Is this Microdim Part# 11-11887 approved for certified aircraft? like a PA28-151 for example?

No, the MicroDim products (the -I and -J units) are uncertified units. They seem to get installed on certified aircraft fairly routinely though through a field approval.
