Metal Jacket For Odyssey 680 Amp Battery

1 Review 3 Answered Questions
$34.50/Each
Quantity
Add to Wishlist
Part# 11-02234
MFR Model# RED

Overview

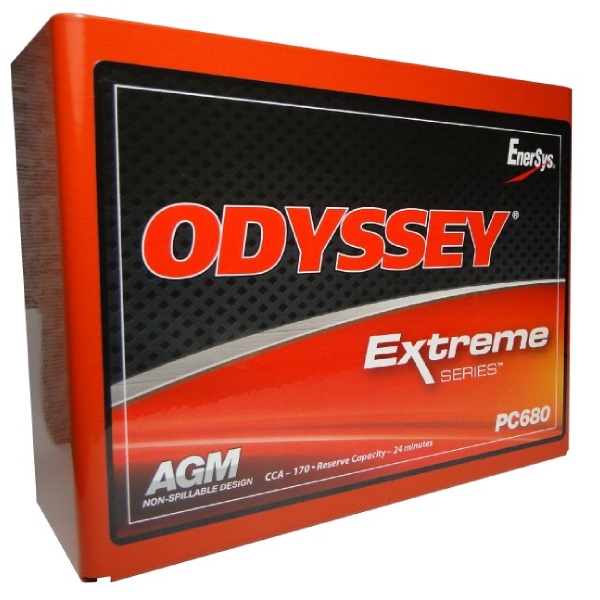

Metal Jacket (Tray) for Odyssey 680 Amp battery

Specifications

MODEL Volt PHCA**
5 sec		 CCA* HCA MCA Nominal Capacity Res
Cap
Min.		 Length
In.
(mm)		 Width
In.
(mm)		 Height
In.
(mm)		 Weight
lbs
(kg)		 Terminal Torque
Spec
lbs
(max)		 Internal
Res
(mΩ)		 Short
Circuit
Current
20HrAh 10HrAh

PC310		 12 310 100 200 155 8 7 9 5.43
(138.0)		 3.39
(86.0)		 3.98
(101.0)		 5.9
(2.7)		 M4 - Receptacle 8.9
(1.0)		 27.1 455A

PC370		 12 425 200 315 270 15 14 25 7.9
(200.0)		 3.0
(77.0)		 5.5
(140.0)		 12.5
(5.7)		 M6 Stud 35
(3.9)		 13.5 891A

PC535		 12 535 200 300 265 14 13 21 6.70
(170.2)		 3.90
(99.1)		 6.24
(158.5)		 12.0
(5.4)		 M6 - Receptacle 40
(4.5)		 8 1000A

PC545		 12 460 150 280 220 13 12 18 7.00
(177.8)		 3.38
(85.9)		 5.17
(131.3)		 11.4
(5.2)		 M6 - Receptacle 50
(5.6)		 10 1200A

PC625		 12 540 220 420 340 18 17 26 6.70
(170.2)		 3.90
(99.1)		 6.95
(176.5)		 13.2
(6.0)		 M6 - Receptacle 40
(4.5)		 7 1800A
PC680 12 520 170 350 280 16 16 24 7.27
(184.7)		 3.11
(79.0)		 7.55
(191.8)		 15.4
(7.0)		 M6 - Receptacle† or SAE 3/8” Receptacle 50
(5.6)		 7 1800A

PC925		 12 900 330 610 480 28 27 48 6.64
(168.7)		 7.05
(179.1)		 5.83
(148.1)		 26.0
(11.8)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 5 2400A

PC950		 12 950 400 600 500 34 32 60 9.8
(250.0)		 3.8
(97.0)		 6.1
(156.0)		 20.0
(9.0)		 M6 Stud 35
(3.9)		 7.1 1700A

PC1100		 12 1100 500 800 650 45 43 87 9.8
(250.0)		 3.8
(97.0)		 8.1
(206.0)		 27.5
(12.5)		 M6 Stud 35
(3.9)		 5.1 2450A

PC1200		 12 1200 540 860 725 42 40 78 7.87
(199.9)		 6.66
(169.2)		 7.60
(193.0)		 38.2
(17.4)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 4.5 2600A

PC1220		 12 1220 680 960 860 70 64.8 135 10.94
(278.0)		 6.88
(175.0)		 7.48
(190.0)		 45.6
(20.7)		 DIN Lead Post N/A 5.7 2200A

75-PC1230		 12 1230 760 1050 815 55 50 110 9.46
(240.3)		 7.08
(179.8)		 7.22
(183.4)		 45.5
(20.6)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

75/86-PC1230		 12 1230 760 1050 815 55 50 100 9.46
(240.3)		 7.08
(179.8)		 7.92
(201.2)		 45.5
(20.6)		 Top SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

PC1350		 12 1350 850 1080 960 95 88.5 195 13.90
(353.0)		 6.88
(175.0)		 7.48
(190.0)		 60.4
(27.4)		 DIN Lead Post N/A 4.2 2900A

25-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

35-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

34-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE 60
(6.8)		 2.5 3100A

34R-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE, Positive Right Terminal 60
(6.8)		 2.5 3100A

34M-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.95
(201.9)		 49.5
(22.4)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 60
(6.8)		 2.5 3100A

34/78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.88
(200.2)		 49.5
(22.4)		 TOP SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.34
(186.4)		 49.5
(22.4)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

PC1700		 12 1550 810 1325 1175 68 65 142 13.03
(331.0)		 6.63
(168.4)		 7.78
(197.6)		 60.9
(27.6)		 M6 Receptacle† or SAE 3/8”
Receptacle		 60
(6.8)		 3.5 3500A

65-PC1750		 12 1750 950 1350 1070 74 65 145 11.83
(300.5)		 7.20
(182.9)		 7.50
(190.5)		 58.0
(26.3)		 SAE 60
(6.8)		 2.0 5000A

PC1800-FT		 12 1800 1300 1600 1450 214 190 475 22.75
(577.9)		 4.9
(125.0)		 12.44
(316.0)		 132.3
(60.0)		 3/8" Stud 80
(9.0)		 3.3 3800A

31-PC2150		 12 2150 1150 1545 1370 100 92 205 13.06
(331.7)		 6.89
(175.0)		 9.59
(243.6)		 77.8
(35.3)		 3/8" Stud
or SAE		 150-220
(16.9-22.6)		 2.2 5000A

31M-PC2150		 12 2150 1150 1545 1370 100 92 205 13.00
(330.2)		 6.80
(172.7)		 9.39
(238.5)		 77.8
(35.3)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 150-220
(16.9-
22.6)		 2.2 5000A

PC2250		 12 2250 1225 1730 1550 126 114 240 11.26
(286.0)		 10.59
(269.0)		 9.17
(233.0)		 86.0
(39.0)
SAE Terminal and 3/8" Stud 		100
(11.0)
for 3/8"
Stud Only		 2.1 5000A
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

As described

Peter W Verified Purchase

Metal Jacket For Odyssey PC680 Red
January 19, 2024

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of this metal jacket for Odyssey 680 amp battery?

This product weighs approximately 1.29 lbs.

Q: Is the metal jacket required for the odyssey battery mounting? Does the Hold Down bracket negate needing the jacket?

The metal jacket is not required for the mounting of the battery. The purpose for the metal jacket is to protect the battery from exposure. The hold down bracket would also protect the battery. This being said, the metal jacket would not be needed if the hold down bracket is in use.

Q: I would like to know the dimensions of the metal jacket.

The Odyssey metal jacket (11-02234) has the following dimensions: Length 7.25", width 3.1", height 6.65"
