Panel Post Light
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview

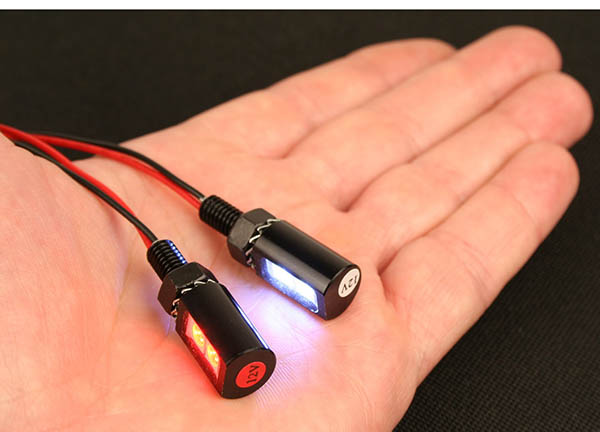

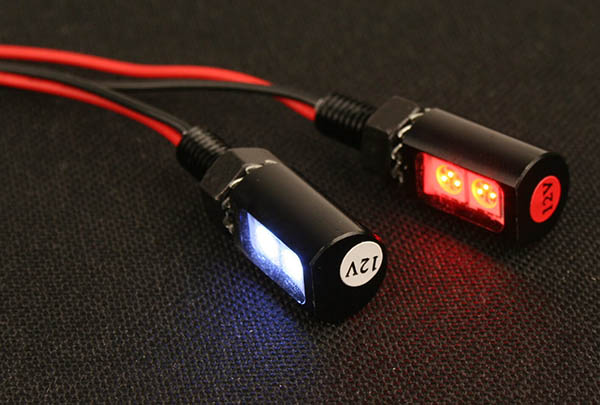

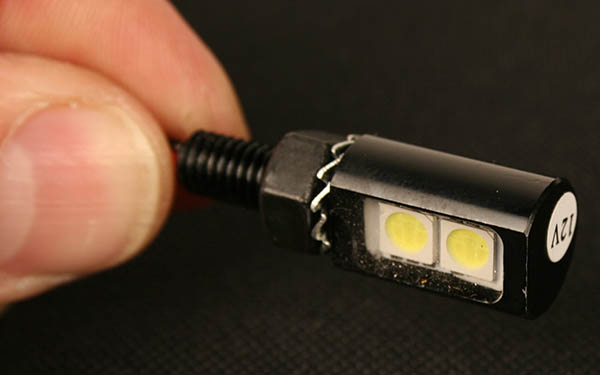

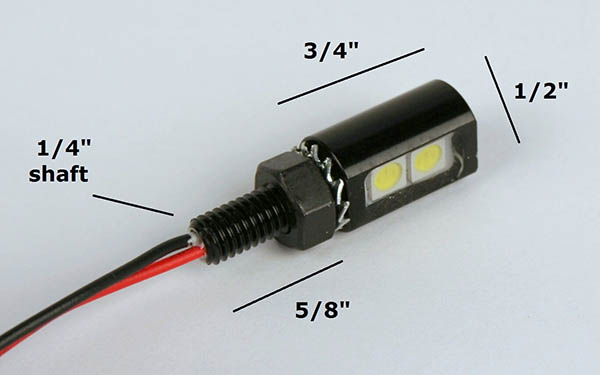

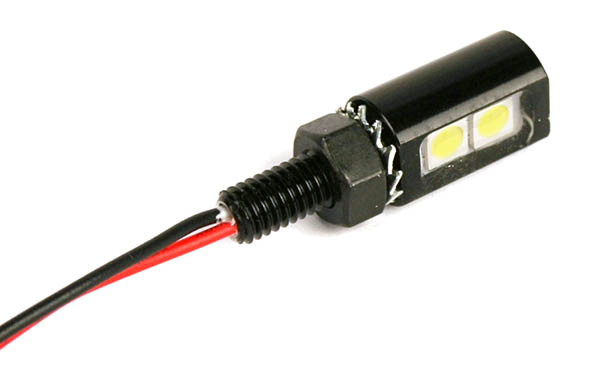

| Panel Post Light. Compact design, just 3/4" x 1/2" (6mm shaft diameter). 2 super-bright LEDs. Ideal for panel lighting or map lighting. |
Reviews
Great little LED lights that blend into the panel and offer a good amount of light output.
Verified Purchase
New Panel Post Light- 12VDC Red
Worked as advertised
Verified Purchase
New Panel Post Light- 12VDC White
They work nicely on experimental aircraft well worth it
Verified Purchase
New Panel Post Light- 12VDC Red
Super
Verified Purchase
New Panel Post Light- 12VDC Red
Works well...
Verified Purchase
New Panel Post Light- 12VDC White
Got it to improve the dashlights on my wifes 2004 Forester...she can noe see the instrument cluster jes fine..especially in daylight. Beats tearing the dash apart and installing brighter replacement bulbs that dont work half the time! Thanks!
Verified Purchase
New Panel Post Light- 12VDC Red
The 12volt LED panel light arrived in minimum time. I purchased for a simulator panel, the quality is excellent. Brightness is adjustable, starting at 5volts through 12volts.
Works as advertised
years in the industry and have always hated not just the price of post lames on the market but have not been impressed with old school lamps . this idem has changed my view about using post lambs in my projects. see if for yourself at my wings over Wyoming Facebook page or my forgotten transport of America Facebook page. I will continue to us this product in my business
Installed it on my golf cart dash, works great.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This light is not FAA TSO'd or STC'd.
The current draw for the 12V light is .05ma the 24V light draws .06ma
Yes, the panel post lights are dimmable.
The threads are 1/4" the light itself is 1/2".
It depends on the instrument panel but in general, these post lights can illuminate from 2 to 4 instruments. (meaning: Two on the top row and the two below them)
Yes, they are. (Within limits).
They dim OK with regular incandescent dimmers - not as well as with a PWM (pulse wave modulation) dimmer but they work acceptably well with older types.
The Panel Post lights have a 120 degree pattern.
They will work with incandescent dimmers but not as well. A PWM dimmer would be a better option. They are not approved for certified aircraft.
24 gauge wire
