Whelen Interior Light A350Cn Series

Select Color:
Black Post / White Lens (Small)Black Post / Red Lens (Small)Black Post / White Lens (Large)
Select Voltage:
14V28V

Overview

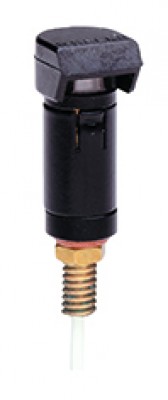

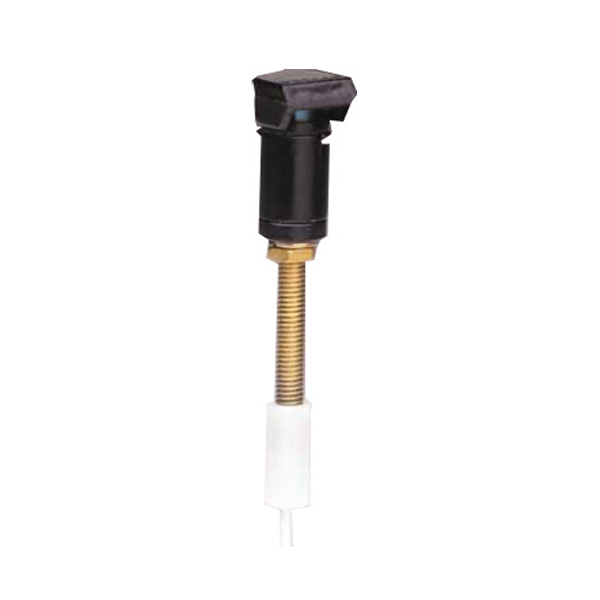

The A350CN series instrument post light assembly is designed to illuminate the instrument panel and function as instrument mounting bolts. Identical to the A350 Series but with the connector nut.

Specifications

  • Drawing Number A350CN: 70119
  • Exposed Height: .875” (22mm) without spacer, 1.00” (25mm) with spacer
  • Power Consumption: 0.2 amps @6 VDC, 0.08 amps @14 VDC, & 0.04 amps @ 28 VDC
  • Weight: 0.037 lbs. (17gm)
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

David P Verified Purchase

Whelen A350Cn-Rd-Bk-Sh-14 Post Light

July 9, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have replacement bulbs for 11-03214? Red or Green

We have added the replacement parts as "Accessories" on this web page. 11-03214 is 14V so the replacement bulb would be 11-04016. This bulb itself is clear. The replacement head assemblies are also listed. They come in red, instrument white, and clear. Note: the clear has a blue-ish tint.

Q: What is the wire length that comes with the connector nut for the light post, part # 11-03205?

The wire length is 35.5".

Q: What is the thread size of the post?

8-32

Q: Do you put these in the upper or lower instrument mounting hole, left or right? Will one light illuminate more than one instrument, or is this a one per instrument deal?

As these are accessory lights, there is no specific (regulatory or otherwise) mounting restrictions.

Q: Which dimension(s) is different between the small and large? is it the post height?

It would be the length of the threaded section.

Q: Are these post lights PMAd or TSOd?

These lights have a PMA for Mooney aircraft only.

Q: How long is the threaded section of the large lights vs the small lights?

Long: 1.50, Short: 1.00
