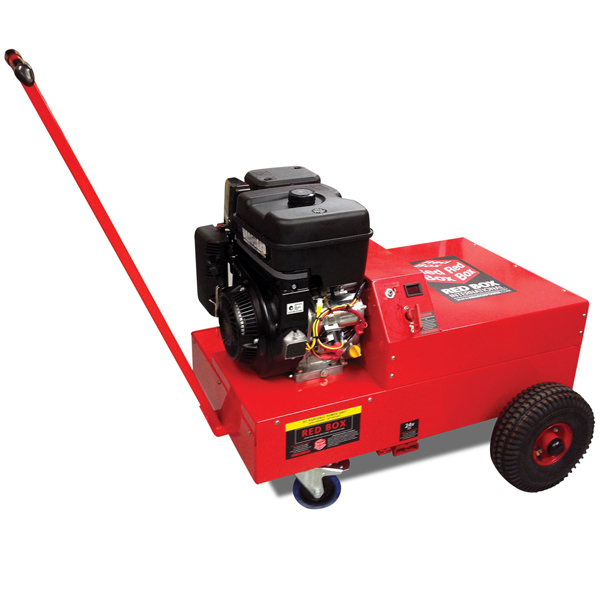

- Photo may represent series and not specific product
- SHARE
Start Power Hybred-170/4 170A Continuous Power Unit 3500 Amps / 28 Volts
$17709.00/Each
Part# 11-15562
MFR Model# CHYB170/4
MFR Model# CHYB170/4
Overview
|
This Red Box unit combines a petrol engine with a bank of batteries to o er the slickest combination unit in the world. The weight and size of this unit is unrivaled, making it the obvious choice of Business Jet owners and operators. The Red Box hand portable packs are some of the most powerful Hand Portable Packs available worldwide. Red Box uses the latest in military aerospace technology to achieve a very high power to weight ratio. These power packs are designed for starting of piston, turboprop or turbine aircraft and helicopters in the field or in remote locations and Red Box units may be carried safely on board all aircraft. The power packs are “all weather” units and being modular, can be used in single or dual format. They can be used or stored in any orientation, even inverted. Cells used are cleared as non-hazardous cargo for carriage in the aircraft. They are able to operate in extremes of temperature and have excellent standby characteristics. They are maintenance free and do not require cycling. They can be re-celled “on condition” at any Red Box service center in the world and are designed to give years of repeated service. In addition to aviation, these highly portable units can be used with Armored Fighting vehicles and Military equipment. They can be recharged from the automatic charging system, which is supplied in the package, or from any vehicle using a suitable interface. Volts DC: 28 Peak Amps: 3500 Maximum S/C Amps: 5200 Continuous Amps: 170 Battery Type: Lead Acid Weight: 150 kg |
Features
Features- High capacity heavy-duty engine starting of, aircraft.
- Lightweight portable start andContinuous power at remote locations.
- Starts Combat and Military vehicles.
- Lightweight continuous DC power for Maintenance Training and Weapons Testing.
- Tough and compact.
- Maintenance free cells.
- No memory effect.
- High charge retention cells.
- Long shelf life.
- Fast recharge.
- No cycling.
- Leak proof cells.
- Cellsreplaceable on condition.
- Over Voltage.
- Thermal Management.
Specifications
- Continuous Power from Engine: 170 amp @ 28.5 V DC
- Max Start Voltage: 26 V DC
- Voltage Indication: Digital IP65
- Max Amps: 3500 Nominal short Circuit 4 Cells / 5200 Maximum short Circuit
- Capacity: 76 Amp Hrs at 10 Hr rate
- Engine Size/Fuel: 392CC – Unleaded Petrol Engine / developing 13 HP / EPA compliant / Integrated Fuel Filtering
- Engine Starting: Electric – Hand Pull Back-up
- Engine Fuel Tank: 7.9 Litre
- Engine Exhaust: Super Lo Tone System
- Spark Arrestor in Exhaust
- Engine Battery: Separate Insulated 12 V
- Engine Protection: Low Oil Auto Shutdown
- Cooling: Fan Cooled
- Operation: All Weather
- Operating Temperature: -30° to +40°C
- Dimentions (mm): 950 x 550 x 640 High – Main Body
- Weight: 150 kg
