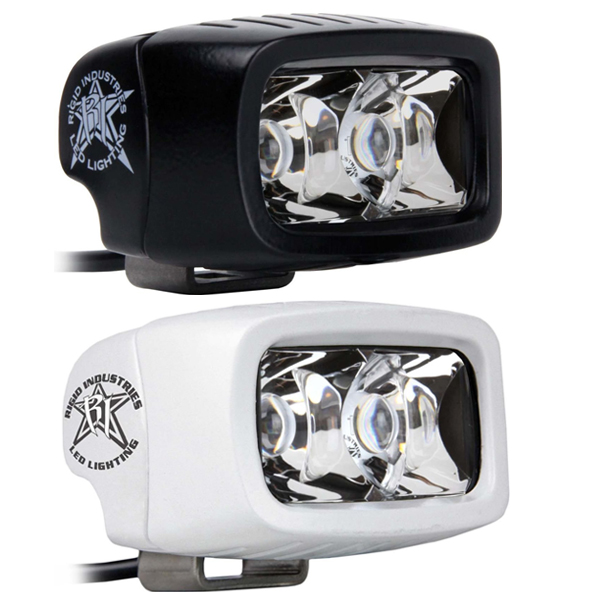

SR-M Spot Landing Light Non TSO - Black

$253.95/Each
Quantity
Add to Wishlist
Part# 11-11221
MFR Model# 902213

Overview

Single row mini with Rigid patented optical system. Light weight at just 7.0 ounces with hardware.

Specifications

  • A360 Cast Aluminum Housing
  • 7-36V DC input
  • Weight: 1/2 lb
  • Dims: 4.6cm H x 7cm W x 6cm D
  • Protected against RFI / EMC
  • Reverse Voltage Protected
  • Over / Under Voltage Protected
  • Durable UV 3800 Series Powder-Coated
  • Unbreakable Polycarbonate Lens
  • Certified IP68 Housing
  • No Warm Up, Instant On / Off
  • Operating Temp: -40 F to 145 F
  • Limited Lifetime Warranty
  • Landing Light
  • 10 Watts .63 AMP Draw
  • 2 LEDs
  • 700 Raw Lumens
  • 296 Lux at 10m
  • 298 Beam Distance
  • 29625 Peak Beam Intensity
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The light is very effective and simple to install. It has initially interfered with my radio but I understand that a Ferrite Bead will take care of that. It would have been nice if the Ferrite Bead had been included or at least suggested as this appears to be a common issue. Still very satisfied!

Joel Verified Purchase

Rigid Sr-M Spot Landing Light Non-TSO

July 23, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the SR-M Spot Landing Light Non-TSO? Part # 11-11221

Approx dimensions: 4.6cm Height x 7cm Width x 6cm Depth

Q: How does the SR-M SPOT LANDING LIGHT NON-TSO light mount? Is there a bracket?

Per Vendor: The light does come with a bracket to mount the light. It mounts through the back for the light with a single bolt. Then it mounts through the bottom with a single bolt to what you are mounting the light to.

Q: Can these operate on a wig wag switch?

Yes these will work with a wig wag.

Q: Is this SR-M Spot Landing Light a single light or a pair?

These are priced and sold individually.

Q: How long and what is the gauge of the included wiring?

The wire gauge is 18 gauge 2-conductor, the wire from the light is 18 inches w/plug. The harness is 10 ft one way and 8 ft the other. The switch is included
