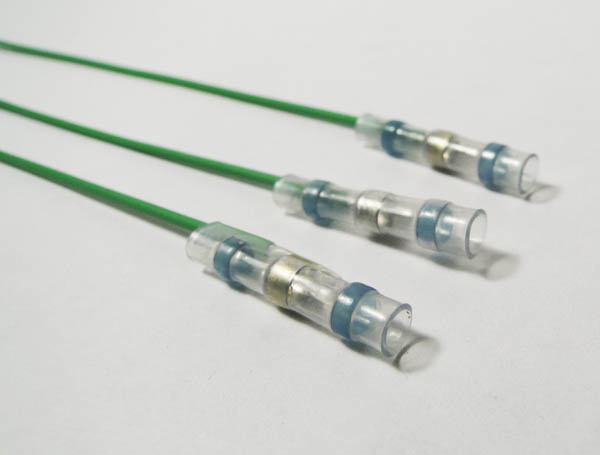

Single Conductor 1/4 Inch Solder Sleeve With Pigtail
MFR Model# CWT-7-W122-5
Overview
|
Soldersleeve Shield Terminators. SolderSleeve shield grounding terminators provide an environmentally sealed, insulated, and encapsulated solder connection for a variety of applications. Product Type: Shield Terminator Operating Temperature (Max) (°C): 125 Expanded Inside Diameter (Min): 6.8 mm [.27 in] Pre-Installed Lead : Yes Resistance Properties: Splash Protection |
Features
Product Type Features | Product Type Temperature Indicator | Shield Terminator No |
Configuration Features | Pre-Installed Lead Pre-Installed Lead Type | Yes XL Polyethylene |
Body Features | Shield Outside Diameter (Min) Lead Stranding Lead Color Lead Plating | 3.7 mm [.145 in] Stranded Green Tin |
Dimensions | Expanded Inside Diameter (Min) Overall Length Pre-Installed Lead Wire Size (mm²) Jacket Outside Diameter | 6.8 mm [ .27 in ] 32.5 mm [1.28 in] .38 7 mm [.276 in] |
Usage Conditions | Operating Temperature (Max) (°C) Resistance Properties Wire Temperature (Max) (°C) | 125 Splash Protection 85 |
Industry Standards | MIL/NAS Specification (MIL-S-83519, NAS-1747) Government Qualified | No No |
Documents
Reviews
Verified Purchase
Single Conductor 1/4 Solder Sleeve With Pigtail
Verified Purchase
Single Conductor 1/4 Solder Sleeve With Pigtail
Great for grounding out the end of shielded wire.
Verified Purchase
Single Conductor 1/4 Solder Sleeve With Pigtail
Very good quality product
Verified Purchase
Single Conductor 1/4 Solder Sleeve With Pigtail
They work great but they are bigger than 1/4 ID close to 3/8
These are good for what they are, but are too big to neatly terminate shields on 2 and 3 conductor 24 gauge wire. The Sumitomo .250 solder sleeves that Spruce also sells are smaller than these 1/4 inch sleeves and work a lot better for that application.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
6 inches.
These are priced and sold individually, so quantity one will be one piece shown.
Yes, this will work for 22 AWG wire.
Yes, 18 gauge wire will work with this.
18 gauge
