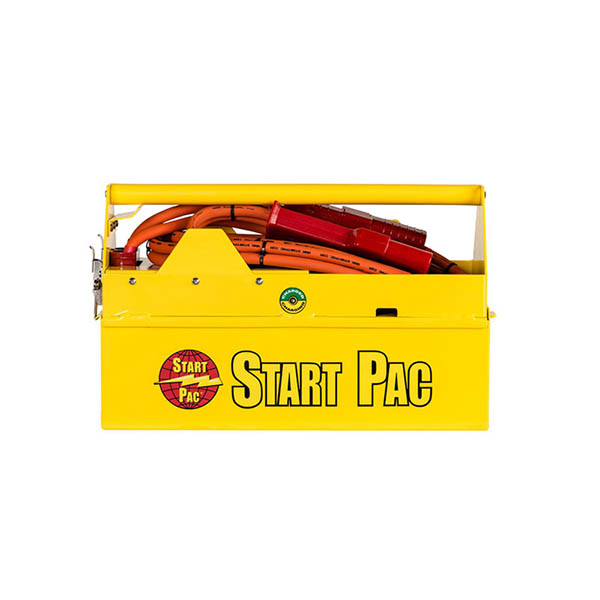

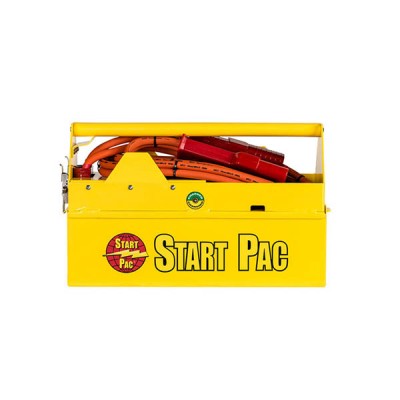

Start Pac ® Portable Starting Unit - 24V 2300 Qc
MFR Model# 2300QC
Overview
|
All In One air portable/carry-on START PAC® with built in chargers, power plug and cables.
Units are 24/26 VDC output, with universal chargers that will accept 90-240 VAC 50/60 hertz. Note: When storing the Start Pac® for more than 30 days, remove the battery box from the charging unit and store separately. |
Features
- The Model 2300QC can be used for starting engines up to 1500 horse power and give four to six starts between charges.
- This unit has a dual redundant 4 amp chargers.
- When plugged into an AC source, 8 amps at 28VDC, is available for maintenance functions without depleting the batteries. Recharge time is approximately 3-1/2 hours.
- Certain aircraft will allow the shipfs generator to back charge a GPU. In this manner, this portable battery pack can be indefinitely recharged in the field without an AC source.
- Batteries have no memory effect and can be recharged at anytime.
- Made in the USA.
Specifications
- 26 AMP hours @ 10 Hour Rate
- 2300 AMPS Peak Current
- Available with separate trolley
- L19.2 x W7.5 x H11.5/L48.768cm x W19.05cm x H29.21cm
- 69 lbs./31 kg Complete weight with built in charger and aircraft cable
- Not to be used as an aircraft battery charger.
Benefits
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The manufacturer recommends a product like PN:11-06834 which is designed for maintenance and to power up various functions such as inverters, and avionics. The Start Pac is designed for starting engines only.
Per the supplier: You should be able to get 3 individual starts.
