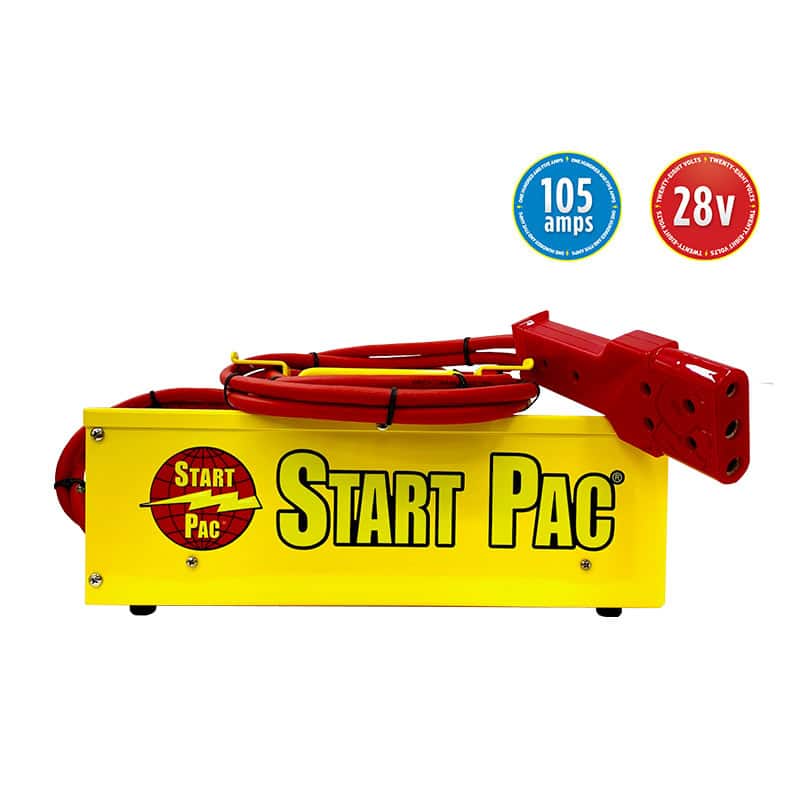

- Photo may represent series and not specific product
- SHARE
Start Pac Portable Power Supply Model 53105M
MFR Model# 53105M
Overview
| Start PacŪ Model 53105 is a 28.5 Volt continuous DC power supply when plugged into 220Volt single-phase AC power. This unit will deliver full 105 amp DC output, but will not provide enough current for engine starting. Therefore this unit is designed for maintenance and to power up various functions such as inverters, avionics, GPS, etc. Made in the USA. |
Specifications
| Maximum Continuous Current output | 105 A |
|---|---|
| DC voltage output | 28.5 VDC |
| AC voltage input | 220 VAC |
| AC current input at maximum DC power output | 14 A @220VAC |
| Phase | Single |
| Forced air-cooling | Yes |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Over temperature protection | Yes |
| Complete weight with aircraft cables | 12lbs / 5.4kg |
| Dimensions Length x Width x Height | 16" x 4-3/8" x 5-1/4" (40 x 11.5 x 13.3 cm) |
Reviews
I ordered a START-PAC 53105 power supply with the 28.5v and 105amp power for our Citation XLS+. Just used it to power the aircraft avionics systems and it works as advertised. Makes it easy to update the avionics. That is the reason we purchased the unit.
Verified Purchase
Start Pac 53105 Power Supply 28.5V 105Amp
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The aircraft cable is 8 foot long. They can be ordered with a custom cable length but the vendor does not recommend longer than 15 feet to avoid amperage loss.
This unit is provided with a detachable 50 FT 12-AWG power cord with bare wire ends so you can install the type of plug needed to match your AC wall receptacle.
To deliver the rated DC output, this unit requires 220V AC 50/60 Hz, 20-amp breaker service, single phase power.
The aircraft cable is 8 feet long, terminated with a standard 3-pin oval plug. The cable is not detachable, not field retrofittable. Can be ordered with up a custom length cable, but vendor does not recommend longer than 15 feet to avoid amperage loss.
The cable uses 4-AWG wire. No, it is not detachable. Permanently wired.
