Aviation Battery Systems StartStick Portable GPU

0 Reviews 0 Answered Questions
Select Model:
10 Amp Hours 15 Amp Hours 20 Amp Hours
Quantity
Add to Wishlist

Overview

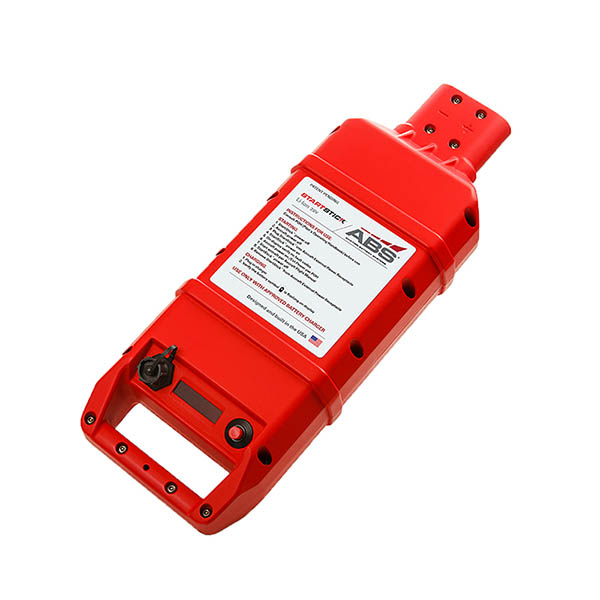

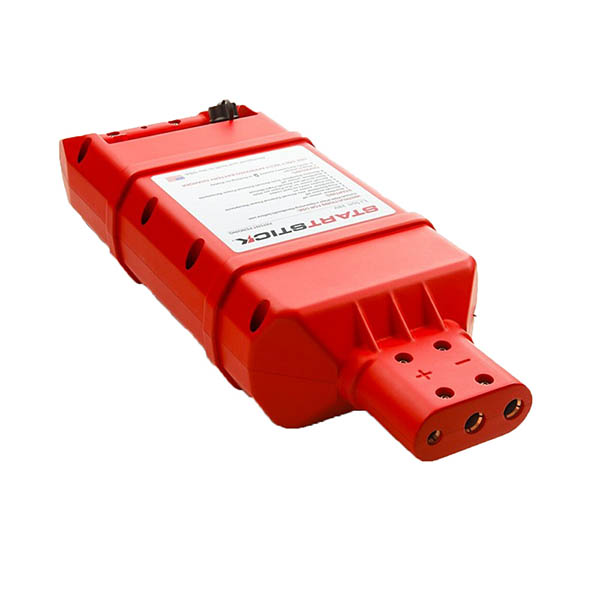

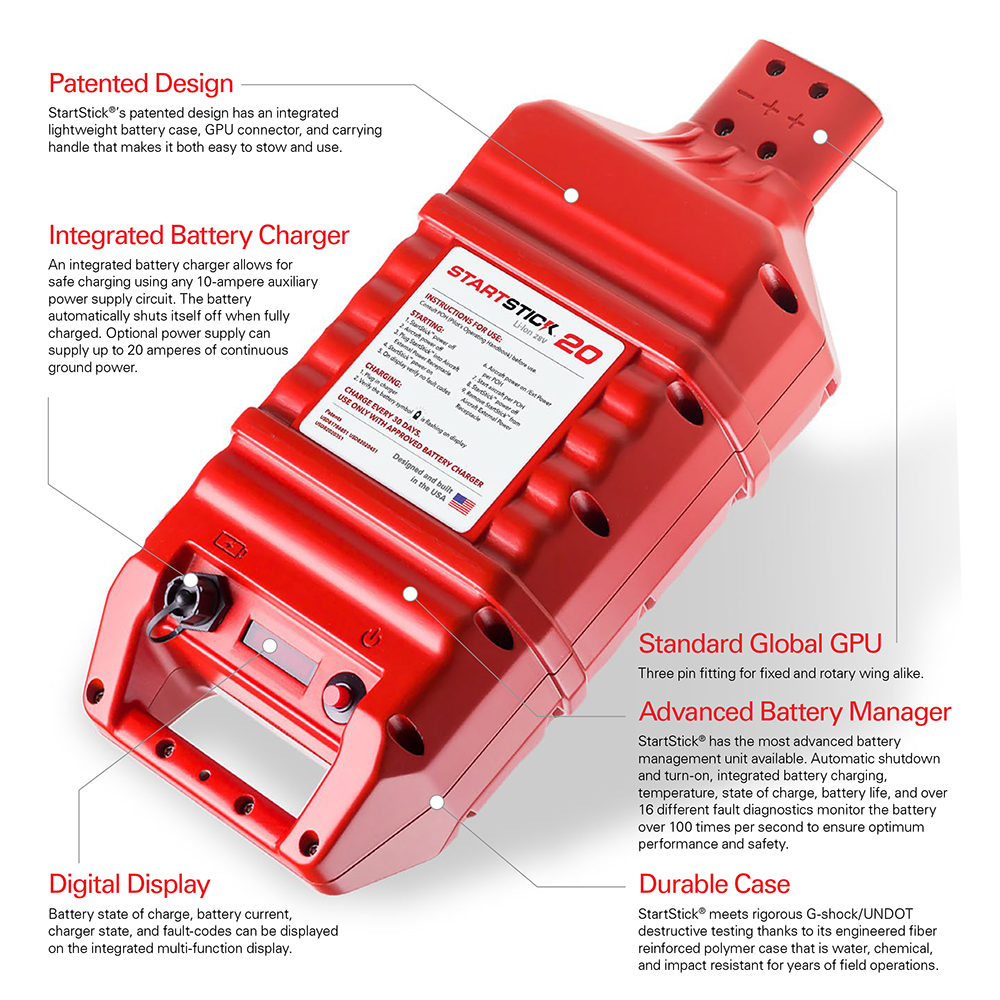

StartStick® has designed an ultra lightweight 28V Portable / Stowable Ground Power Unit (GPU) with a built-in Standard Global 3-Pin connector. The StartStick® portable power unit is powered with high-power Li-Ion (“Nanophosphate™“) cells.

Features

  • Fully Serviceable Battery Pack
  • 3 to 4 Engine Starts Per Charge
  • Transmits up to 28 kilowatts of power
  • Smart Lithium Technology
  • 3,000 to 4,000 starts – Time Before Overhaul
  • Charge Port attaches to on-board auxiliary power supply
  • Includes 120/220V 50/60hzs battery charger
  • Short Circuit Protection
  • Impact, water and chemical resistant polymer case

10AH Specs

  • Weight: 10.6 lbs
  • Load on GPU Connector: 36 lbs/foot
  • Length: 17″
  • Width: 6.25″
  • Height: 3″
  • Capacity: 9.7 Ah
  • Capacity (lead acid equivalent): 19.4 Ah
  • Nominal Voltage: 26.4 Volts
  • Max current (10 sec limit): 480 Amps
  • Max current (Continuous): 200 Amps
  • Max current (Protection off): 19400 Amps
  • Max current (Protection on): 1350 Amps
  • Operating Temperature: -30 to 60 deg C
  • AC Charger Input Voltage: 110/240 Volts
  • In-Flight Charge Circuit Rating: 5 Amps
  • Charge Rate (software regulated): 3.5 Amps
  • Number of starts per charge: 4-Mar
  • Time before discharge: 29 minutes
  • Charge Cycles: >1,000
  • Engine Starts: 3,000 – 4,000
  • Charge Time (after one start): 25-35 minutes
  • Charge Time (dead battery): 2.8 hours
  • State of Charge Indicator: Yes
  • UNDOT Tested: Yes
  • Injection Molded Case: Yes
  • Emergency Start: Yes
  • Ground Operations: Yes
  • Database Updates: Yes
  • On-Board Charger: Yes
  • Fully Sealed: Yes
  • Automatic Shut-off: Yes
  • High Rate Charging: Yes
  • Military Grade: No

15AH Specs

  • Weight: 14.9 lbs
  • Load on GPU Connector: 70 lbs/foot
  • Length: 21.21″
  • Width: 6.25″
  • Height: 3″
  • Capacity: 14.7 Ah
  • Capacity (lead acid equivalent): 29.4 Ah
  • Nominal Voltage: 26.4 Volts
  • Max current (10 sec limit): 720 Amps
  • Max current (Continuous): 300 Amps
  • Max current (Protection off): 38800 Amps
  • Max current (Protection on): 1350 Amps
  • Operating Temperature: -30 to 60 deg C
  • AC Charger Input Voltage: 110/240 Volts
  • In-Flight Charge Circuit Rating: 5 Amps
  • Charge Rate (software regulated): 3.5 Amps
  • Number of starts per charge: 4-Mar
  • Time before discharge: 44 minutes
  • Charge Cycles: >1,000
  • Engine Starts: 3,000 – 4,000
  • Charge Time (after one start): 25-35 minutes
  • Charge Time (dead battery): 4.2 hours
  • State of Charge Indicator: Yes
  • UNDOT Tested: Yes
  • Injection Molded Case: Yes
  • Emergency Start: Yes
  • Ground Operations: Yes
  • Database Updates: Yes
  • On-Board Charger: Yes
  • Fully Sealed: Yes
  • Automatic Shut-off: Yes
  • High Rate Charging: Yes
  • Military Grade: No

20 AH Specs

  • Weight: 19.4 lbs
  • Load on GPU Connector: 38.8 lbs/foot
  • Length: 17.25″
  • Width: 7.31″
  • Height: 4.27″
  • Capacity: 19.4 Ah
  • Capacity (lead acid equivalent): 38.8 Ah
  • Nominal Voltage: 26.4 Volts
  • Max current (Pulse): 1600 Amps
  • Max current (Continuous): 400 Amps
  • Max current (Chemistry): 51733 Amps
  • Operating Temperature: -30 to 60 deg C
  • AC Charger Input Voltage: 110/240 Volts
  • In-Flight Charge Circuit Rating: 5 Amps
  • Charge Rate (software regulated): 3.5 Amps
  • Number of starts per charge: 3 to 4
  • Time before discharge: 60 minutes
  • Charge Cycles: >1,000
  • Engine Starts: 3,000 – 4,000
  • Charge Time (after one start): 30-40 minutes
  • Charge Time (dead battery): 5.6 hours
  • State of Charge Indicator: Yes
  • UNDOT Tested: Yes
  • Injection Molded Case: Yes
  • Emergency Start: Yes
  • Ground Operations: Yes
  • Database Updates: Yes
  • On-Board Charger: Yes
  • Fully Sealed: Yes
  • Automatic Shut-off: Yes
  • High Rate Charging: Yes
  • Military Grade: No
