- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Strobe A650-Pg/Pr Kit #4 14V | 11-03600 | $4790.00 | |
| Strobe Kit #4 With A490T,Df 14V | 11-03605 | $4854.00 | |
| Strobe A650-Pg/Pr Kit #4 28V | 11-03610 | $4881.00 | |
| Strobe Kit #4 With A490T,Df 28V | 11-03615 | $4881.00 | |
| Strobe Kit #5 A650-Pg/Pr 14V | 11-03800 | $3907.00 | |
| Strobe Kit#5 A650-Pg/Pr 28V | 11-03805 | $3963.00 | |
| Strobe #6 A650-Pg/Pr 14V Vert | 11-04000-14-V | $6859.00 | |
| Strobe #6 A650-Pg/Pr 28V Vert | 11-04000-28-V | $6979.00 | |
| Strobe #6 A650-Pg/Pr 14V Horiz | 11-04000-14-H | $6859.00 | |
| Strobe #6 A650-Pg/Pr 28V Horiz | 11-04000-28-H | $6616.00 | |
| Strobe #6 A650-Pg/Pr 14V Vert | 11-04010-14-V | $6950.00 | |
| Strobe #6 A650-Pg/Pr 28V Vert | 11-04010-28-V | $6953.00 | |
| Strobe #6 A650-Pg/Pr 14V Horiz | 11-04010-14-H | $6950.00 | |
| Strobe #6 A650-Pg/Pr 28V Horiz | 11-04010-28-H | $6593.00 | |
| Strobe Kit #7 A650-Pg/Pr 14V | 11-04400 | $4470.00 | |
| Strobe Kit #7 A650-Pg/Pr 28V | 11-04500 | $4554.00 |
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
Overview
|

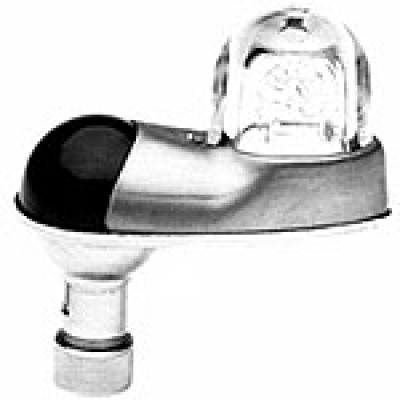

Combines conventional navigation light with white strobe. Newly developed magnifying strobe lens (A 612) concentrates the maximum xenon light energy in the horizontal plane. Wt. 0.4 lb. Specify voltage. STROBE SYSTEMS WITH A 650-PG/PR STROBE/NAV LIGHTS NO. 4 TWO LIGHT SYSTEM (With Local Power Supplies)Two A 650-PG/PR Wingtip Strobe Lights, two A 490A, TS, CF, Power Supplies (400 Effective Candles) and HT Info Packet. NO. 5 TWO LIGHT SYSTEM (With Remote Power Supply) Two A 650-PG/PR Wingtip Strobe Lights, one A 413A,HDA-CF-14/28,CF remote mounted Power Supply (400 Effective Candles) and HD-60 Installation Kit. NO. 6 THREE LIGHT SYSTEM (With Local Power Supplies) Two A 650-PG/PR Wingtip Strobe Lights, one A 500 Tail Position/Strobe Light, (vertical) three A 490A,TS,CF Power Supplies (400 Effective Candles Wingtip Strobes, 300 Effective Candles Tail Strobe) and HT Information Packet. NO. 7 THREE LIGHT SYSTEM (With Remote Power Supply) Two A 650-PG/PR Wingtip Strobe Lights, one A 500 Tail Position/Strobe Light, (vertical) one A 13A,HDA-CF-14/28 remote-mounted Power Supply (400 Effective Candles Wingtip Strobes, 330 Effective Candles Tail Strobe) and HD,T3-90 Installation Kit. |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The flashtube for the A650 wing tip assy is p/n A610.
W1290-14 or -28 depending on your aircraft voltage.
The strobe kit does not contain a pre-made harness and yes the wire, decal set and connectors are sold separately.
